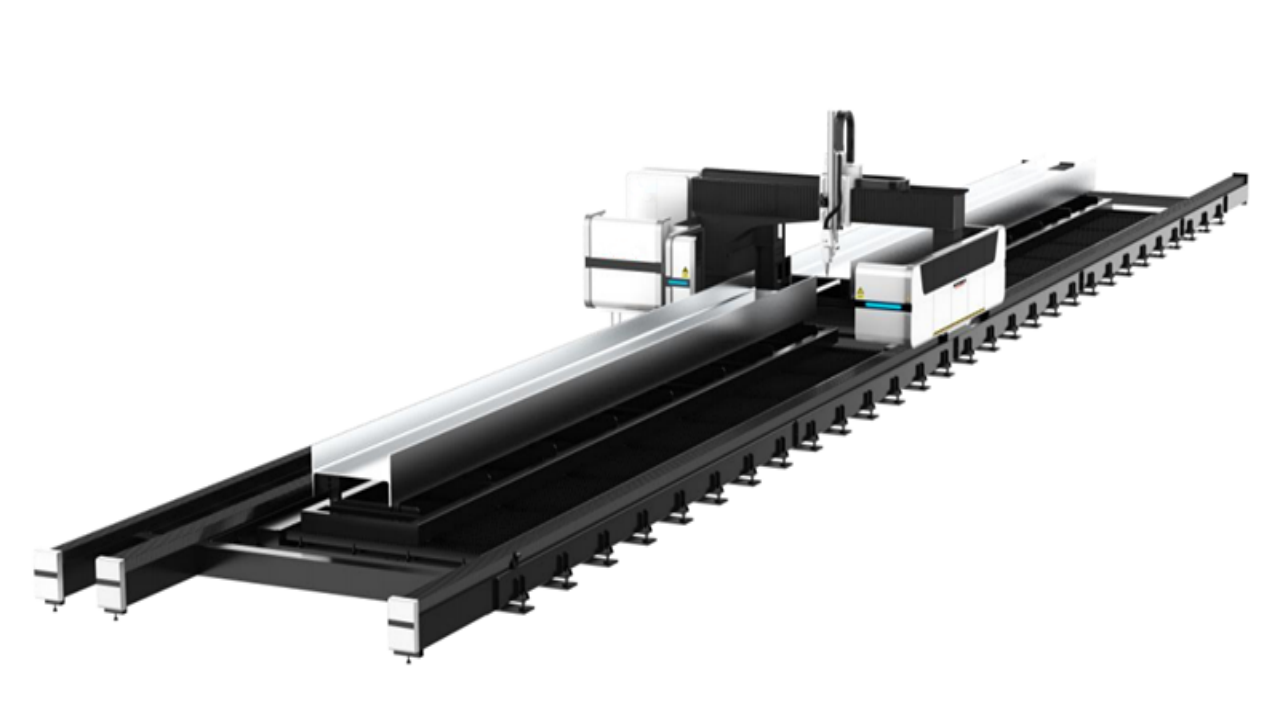

Gantry Type CNC Laser H Beam And Plate Cutting Machine ,it can cut h beam and metal plate in one machine . widely used for steel structure industry .
Details configuration :
Serial No. | Item | Parameter |
1 | Plane cutting range | 15000mm*2500mm,it can be customized |
3 | H-beam Cutting range(Gantry) | Width 150mm≤h≤1000mm,it can be customized |
Height 150mm≤b≤650mm,it can be customized | ||
Length l≤15000mm | ||
4 | X axis | 2500mm |
5 | Y axis | 15000mm |
6 | Z axis | 910mm |
7 | X/Y axis positioning accuracy | ±0.25mm |
8 | X/Y axis repeat accuracy | ±0.05mm |
9 | X/Y/Z maximum speed | 30m/min |
10 | A axis swing angle | ±90° |
11 | C axis swing angle | ±90° |
12 | Maximum acceleration | 0.8G |
13 | Number of phases | 3 |
14 | Power supply specifications | 380V/60HZ |
15 | Total power supply protection class | IP54 |
15 | Laser power | 12~30kW |
