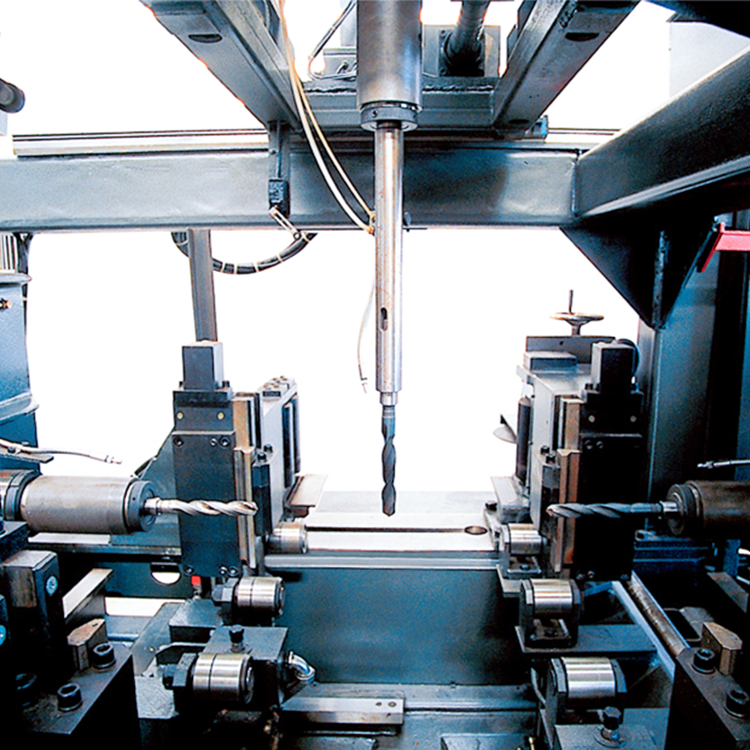

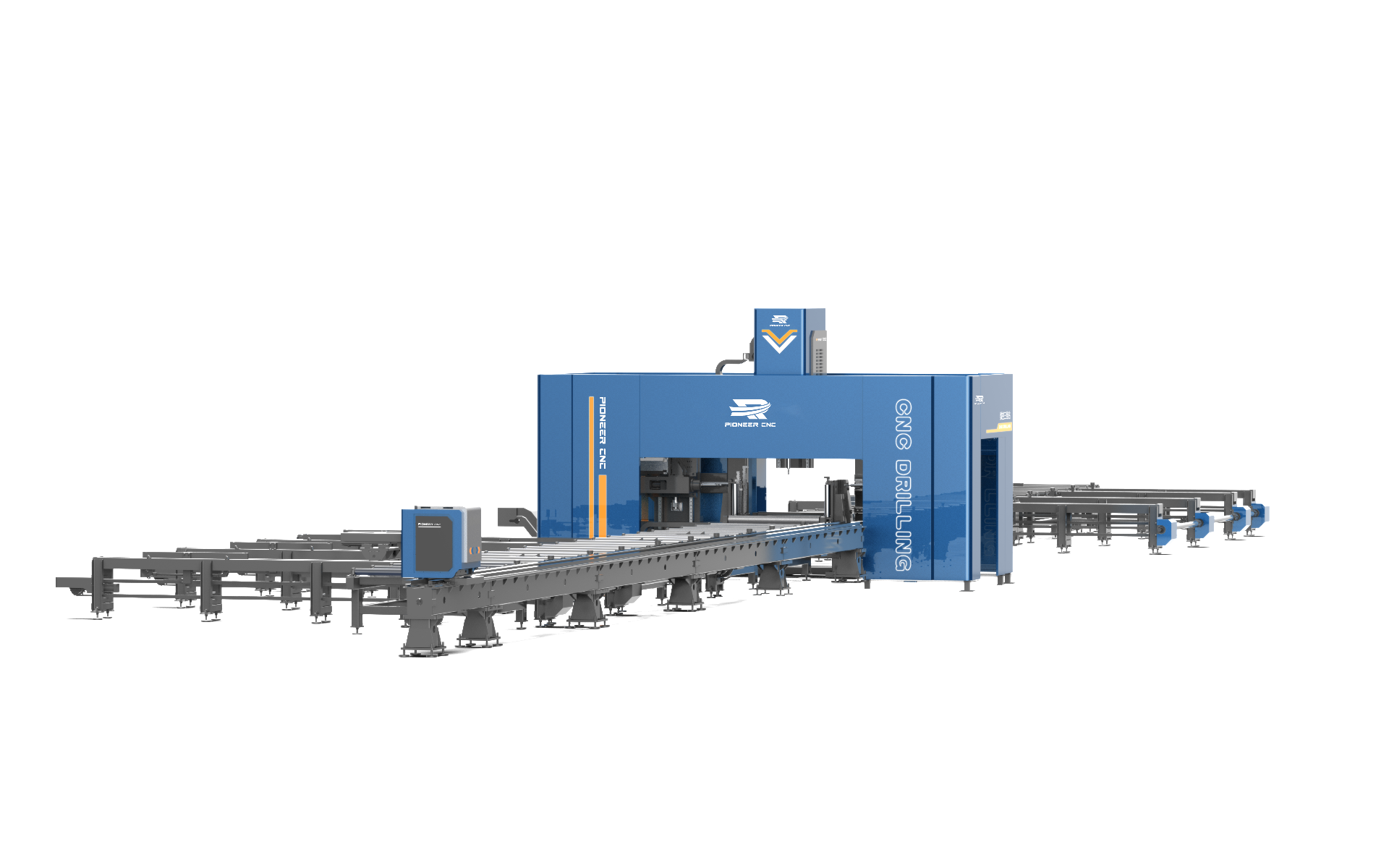

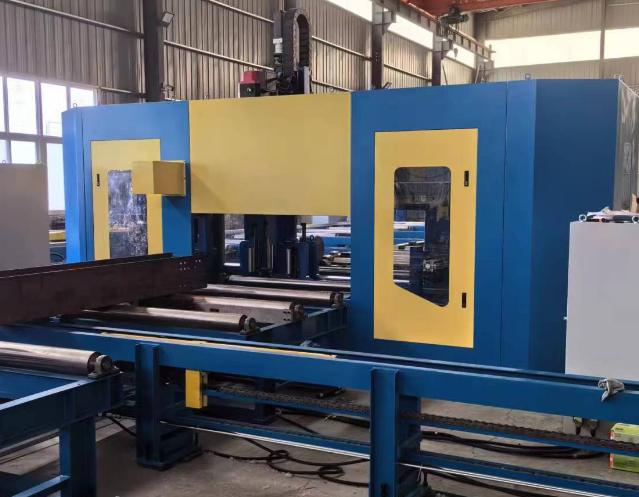

High speed h beam 3D drilling machine , it used for drilling for h beam , angle beam ,I beam , channel beam , widely used for steel structure industry .
Details configuration :
No. | Item | Parameters |
1 | H beam | 100-1250mm |
2 | Beam max thickness | Beam max thickness 40mm |
3 | Max drilling OD | Max drilling OD ￠40mm （8-40mm) (Option OD ￠50mm ) |
4 | Spindle motor power | Spindle motor power 15KW / Option 22KW |
5 | Spindle speed (stepless speed regulation) | Spindle speed (stepless speed regulation)30～6000r/min |
6 | Feeding length | Feeding length 12m |
7 | Feeding speed | Feeding speed 9000mm/min |
8 | Process precision | The distance between adjacent holes in the hole group (<640mm) error ± 0.5mm Hole distance between hole group (> 640mm) error ±1.0mm / 10000 |
9 | Moving axis 10 axis | X axis: upper unit positioning axis |
Y axis: upper unit spindle rotation axis | ||
Z axis: upper unit feed axis | ||
U axis: fixed unit positioning axis | ||
V axis: fixed unit spindle rotation axis | ||
A axis: fixed unit feed axis | ||
B axis: moving unit positioning axis | ||
C axis: the rotation axis of the main shaft of the moving unit | ||
W axis: feed axis of moving unit | ||
S axis: Axial horizontal feeding axis for external pipe fittings | ||
10 | Position cnc axis move speed | 10～6000mm/min |
11 | Feed axis move speed | 10～12000 mm/min |
12 | Max. Loading weight | 10000Kg |
