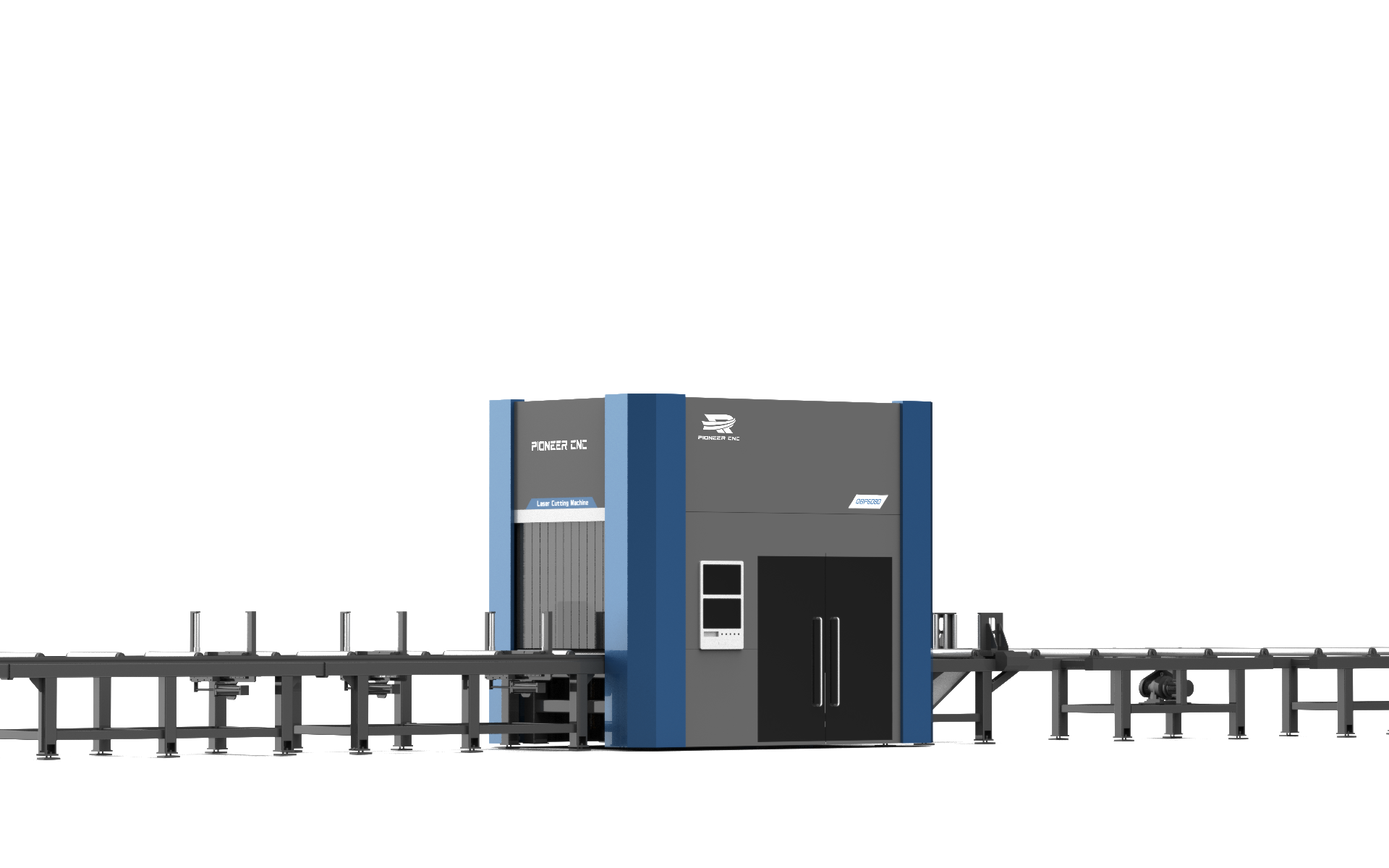

Laser h beam cutting machine production line , include cutting unit , feeding in roller , feeding out roller , auto loading and unloading part . It can cut h beam , angle beam , I beam , channel beam ,match 12kw , 20kw , 30kw laser source .
Details configuration :
The scope of work | H beam | Width 100mm-1200mm Height 100mm-600mm. | |
Cutting way | Laser cutting | ||
Work piece length | 4000-12000mm, support customization | ||
Cutting form of parts | Fixed-length straight cutting, fixed-length oblique cutting and end socket functions. | ||
Mainly applicable workpiece materials: carbon structural steel, stainless steel | |||
Cutting form | Lasers | 12000W/20000w | |
Cutting thickness | Perforation cutting 1-40mm | ||
Bevel cutting | ±45° | ||
Machine accuracy | X, Y axis positioning accuracy | ±0.10mm/m | |
X, Y axis repeat positioning accuracy | ±0.05mm | ||
Maximum idling speed | 33m/min | ||
Cutting accuracy execution standards | ISO9013-2016JB/T1045-2017 | ||
X1 axis & X2 axis gantry axis: cutting head moving axis forward and backward | |||
Y axis: cutting head moves left and right axis | |||
Z axis: cutting head lifting axis | |||
A axis: cutting head rotation axis | |||
C axis: cutting head deflection axis | |||
U axis: external profile axial horizontal feeding axis | |||
Weight | Maximum weight of raw materials | 5000Kg | Remarks: Maximum weight design can be provided according to customer requirements |
