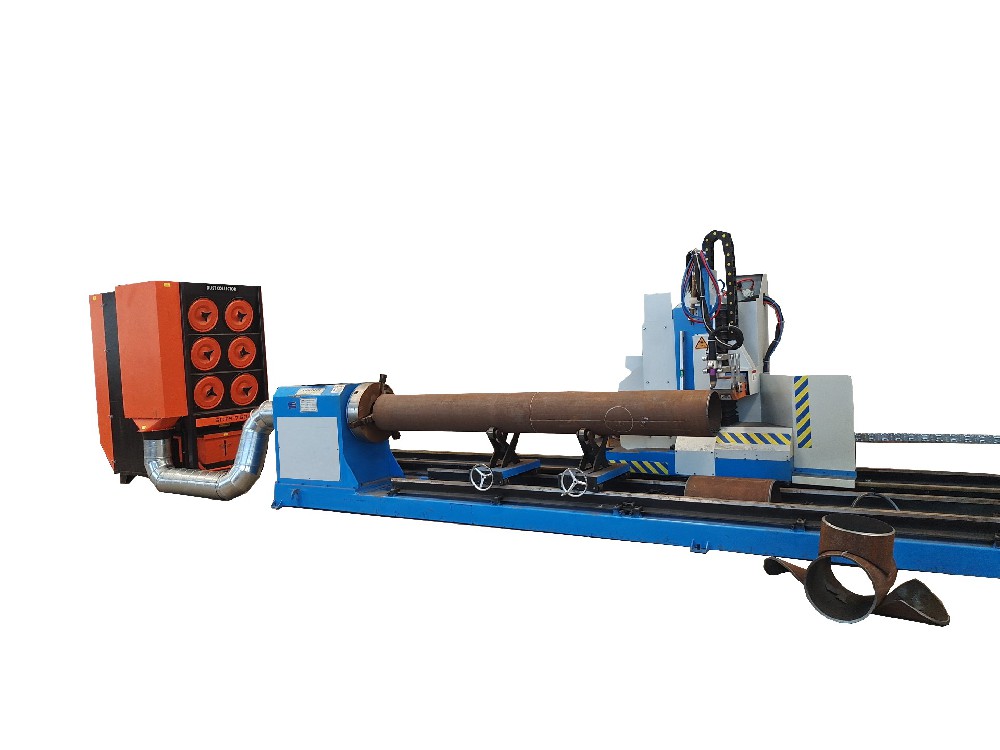

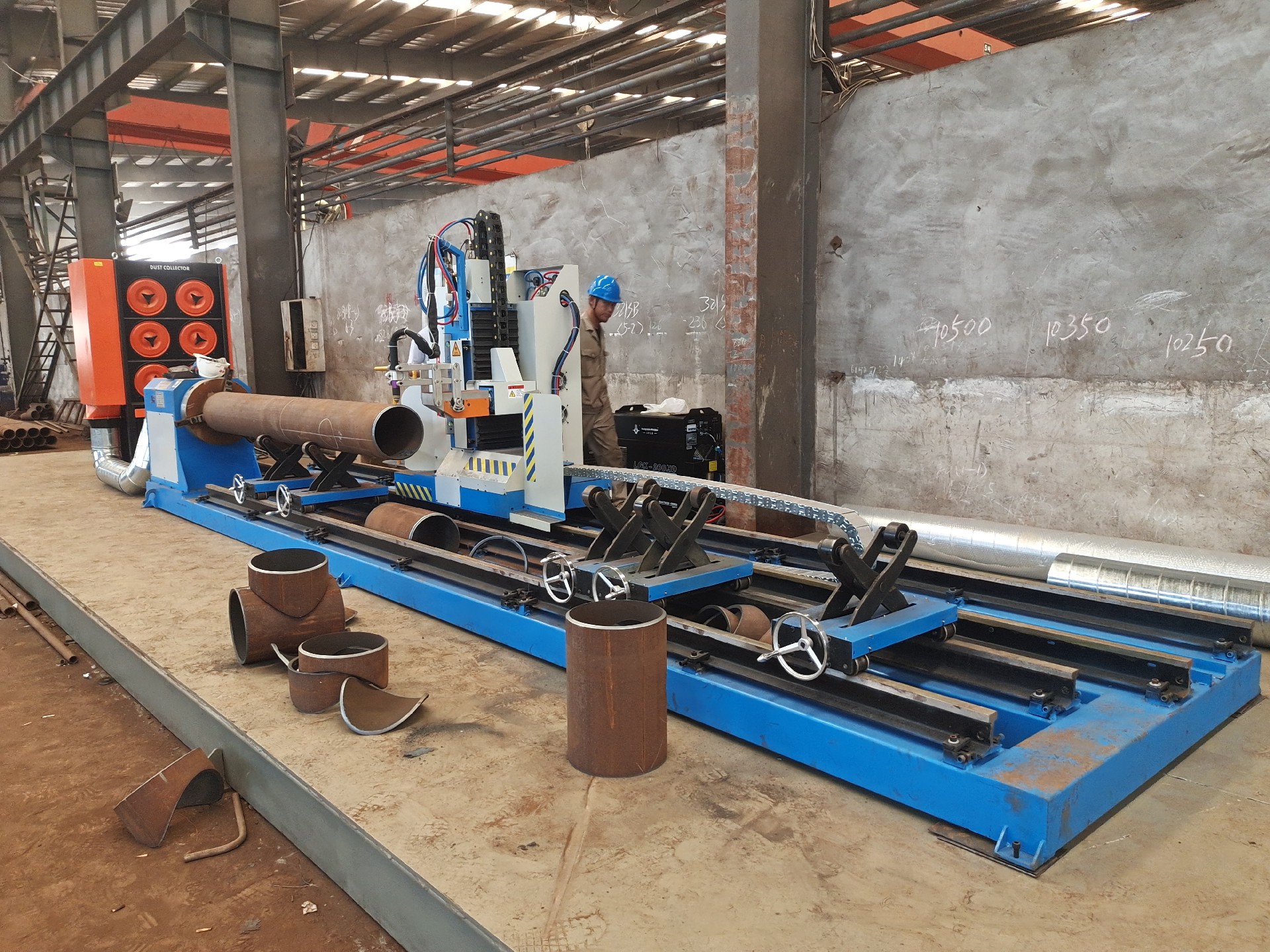

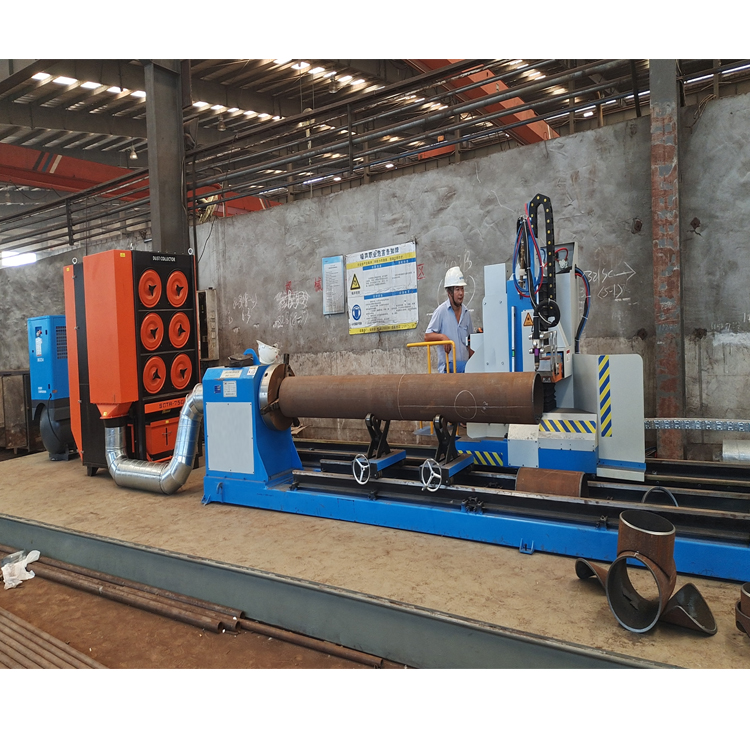

5 Axis CNC Pipe Cutting Beveling Machine ,it can cut and bevel round pipe in one time . Widely used for steel structure , marine engineering , shipbuilding ,pipeline ect industry .
Software support :Solidwords , Autocad , Tekla
CONFIGURATIONS PARAMETRES
Pipe Size | Pipe diameter | Φ=60～630mm（bevel） |
Material length | 12000mm | |
Material | Stainless steel , carbon steel | |

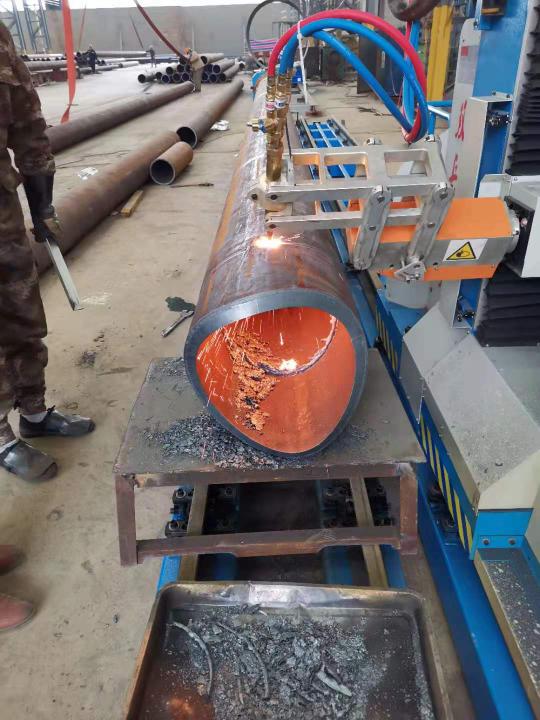

Cutting method | Cutting method | Plasma +flame cutting |
Pipe Wall thickness | LGK-300HD plasma power , it can cut 1-30mm thickness | |
Machine precision
| Required workpiece ellipticity | ≤1% |
Cutting speed | 10～2000mm/min | |
Moving speed | 10～6000 mm/min | |
Cutting length accuracy | ±1.5mm | |
Cutting accuracy implementation standard | ISO9013-2002、ISO8206-1991 And JB/T10045.4-1999JB | |
Chuck | Pipe chuck | Manually operated mechanical 3-jaw self-centering chucks |
Bracket | Quantity | 4 groups |
Weight | Load | 5000Kg |
Color | Machine color | Blue |
