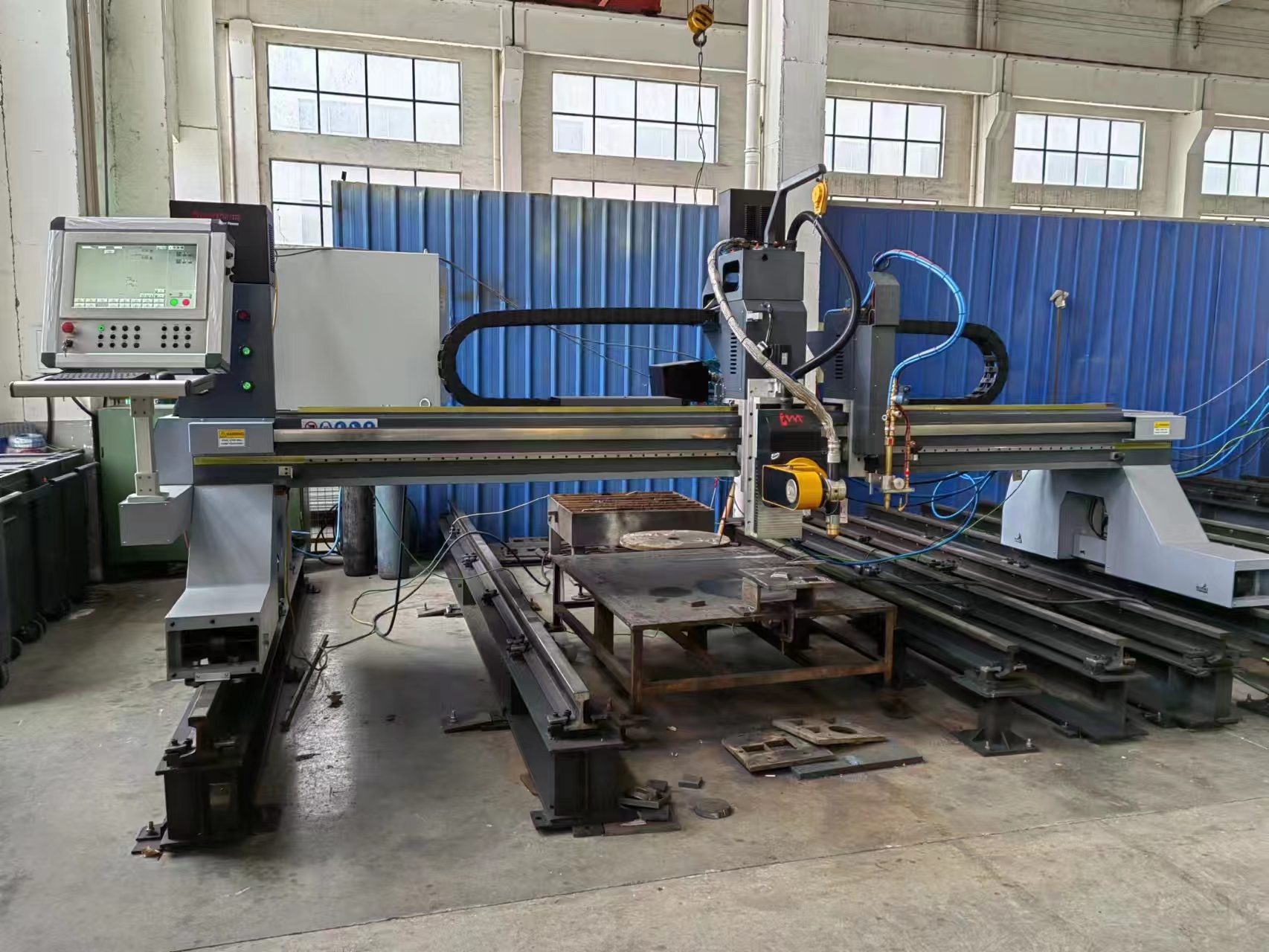

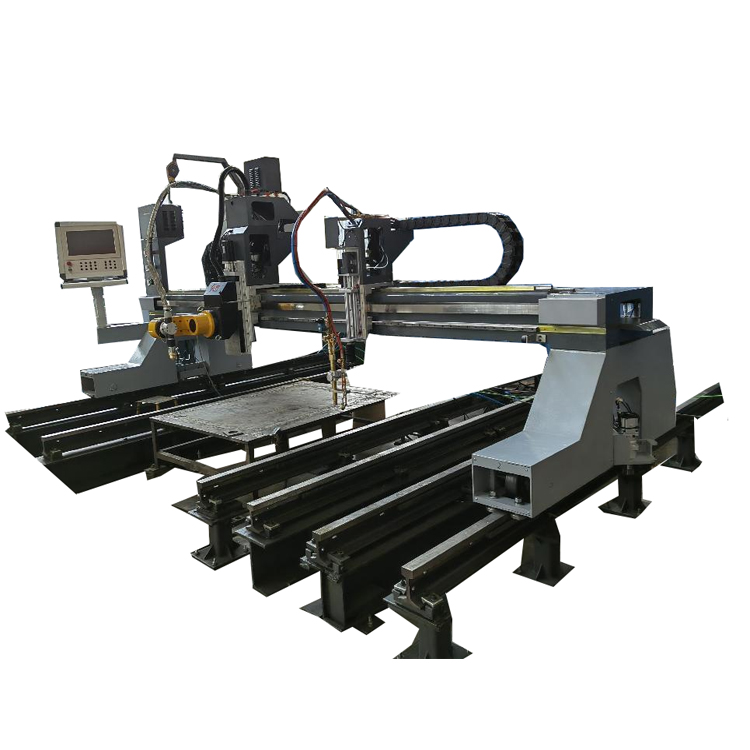

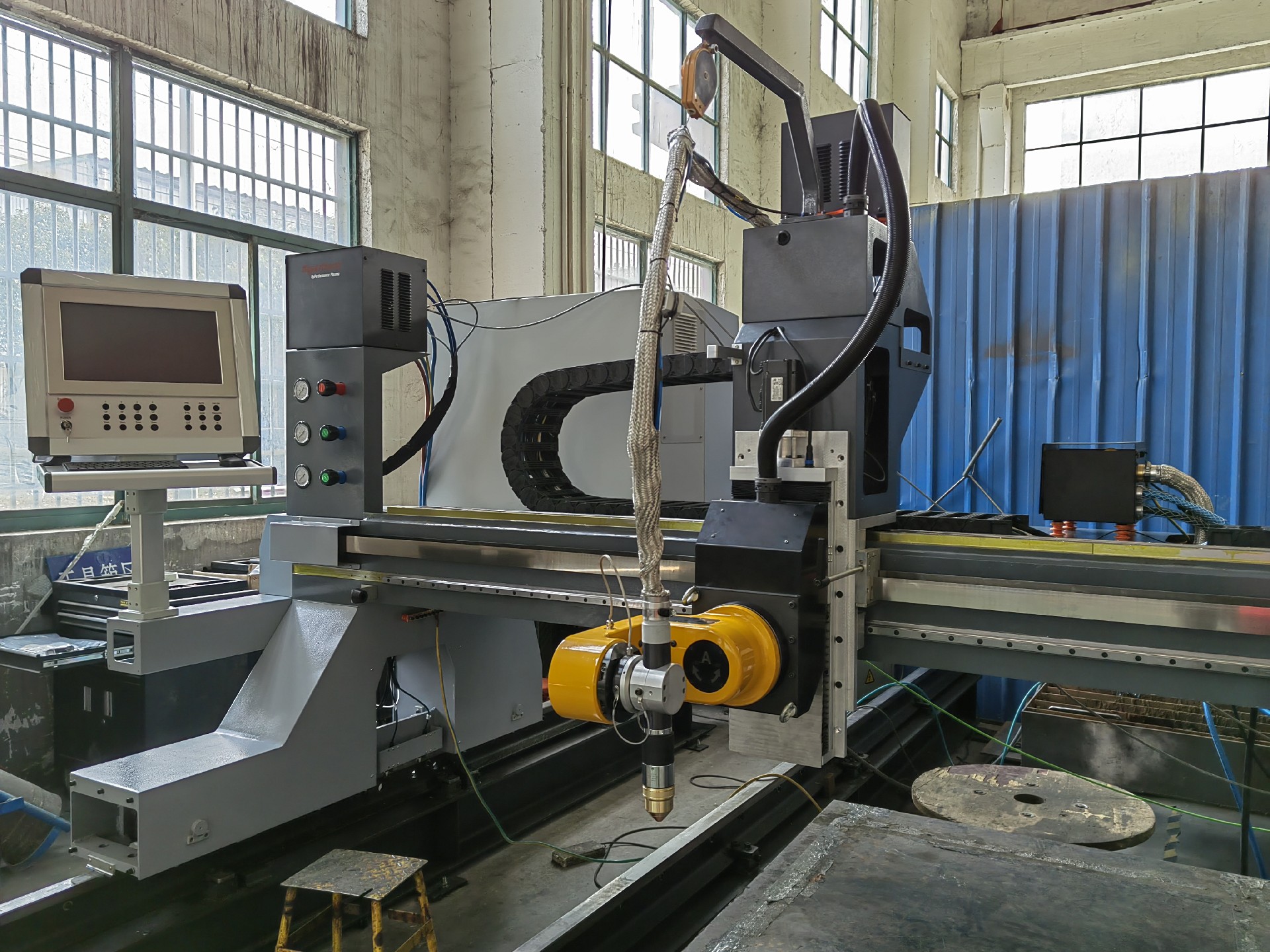

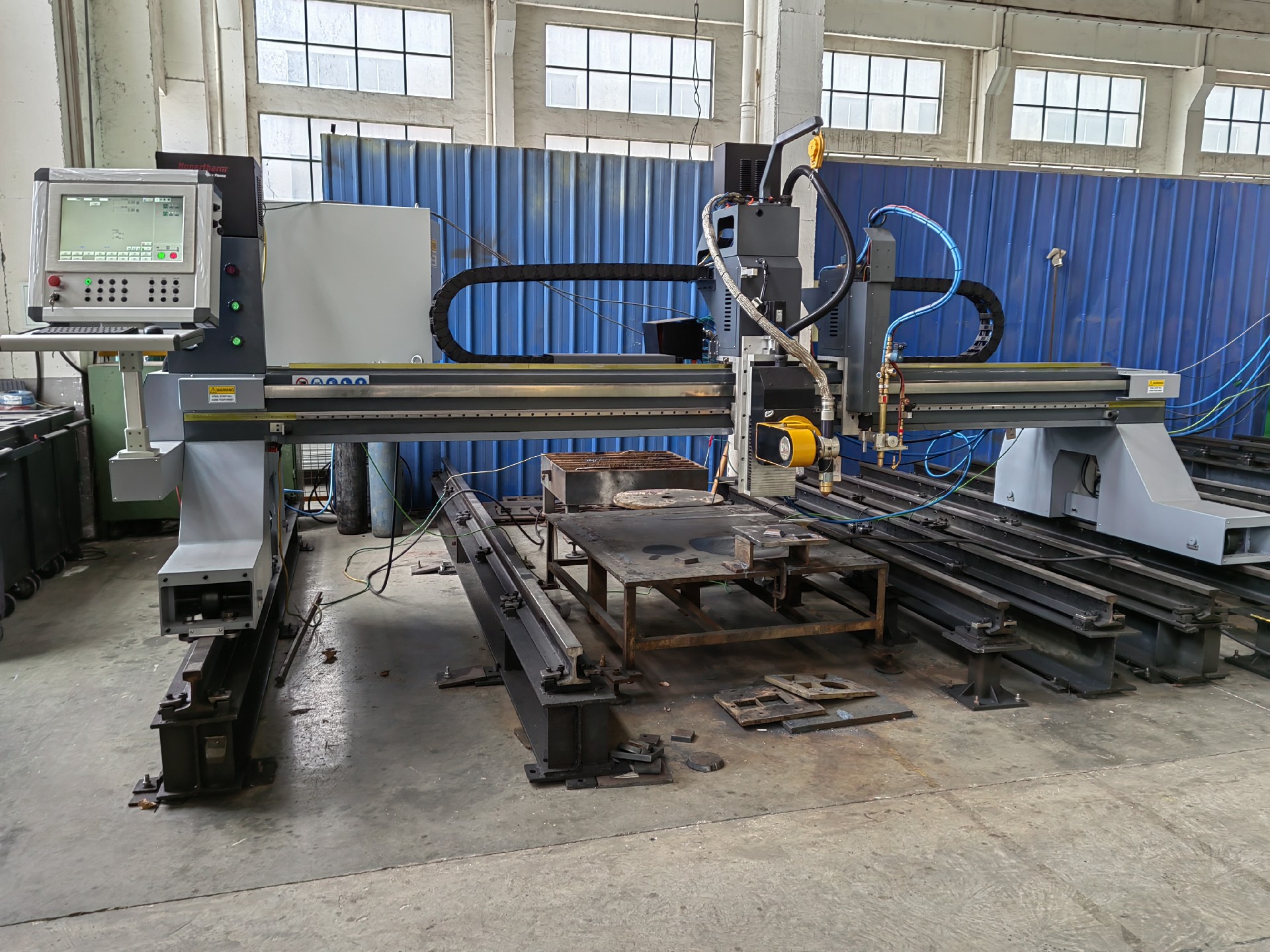

Gantry CNC Plasma Cutting Beveling Machine used for cut and bevel large metal plate , widely used for steel structure ,metal processing , shipyard ect industry .
Cutting method :plasma +flame
Details Configuration :
Number | Items | Quantity and gauge | Instruction |
1 | Model of the main frame | PF-5000×14000 | Double sides driven(Panasonic) |
2 | Track span of the machine tool (mm) | 3000-6000mm | Effective cutting width1500-5000mm |
3 | Track length of machine tool (mm) | 8000-26000mm | Effective cutting length 6000-24000mm |
4 | CNC system(set) | 1 | American Hypertherm EDGE Connect CNC |
5 | Transverse driving station (group) | 1 | For plasma |
Transverse driving station (group) | 1 | For flame | |
6 | Plasma power supply(set) | 1 | American Hypertherm XPR300,VMI gas console for stainless steel and carbon steel cutting |
7 | Arc height controller | 1 | American SensorTHC(control part) |
8 | Plasma anti-collision device | 1 | PIONEER |

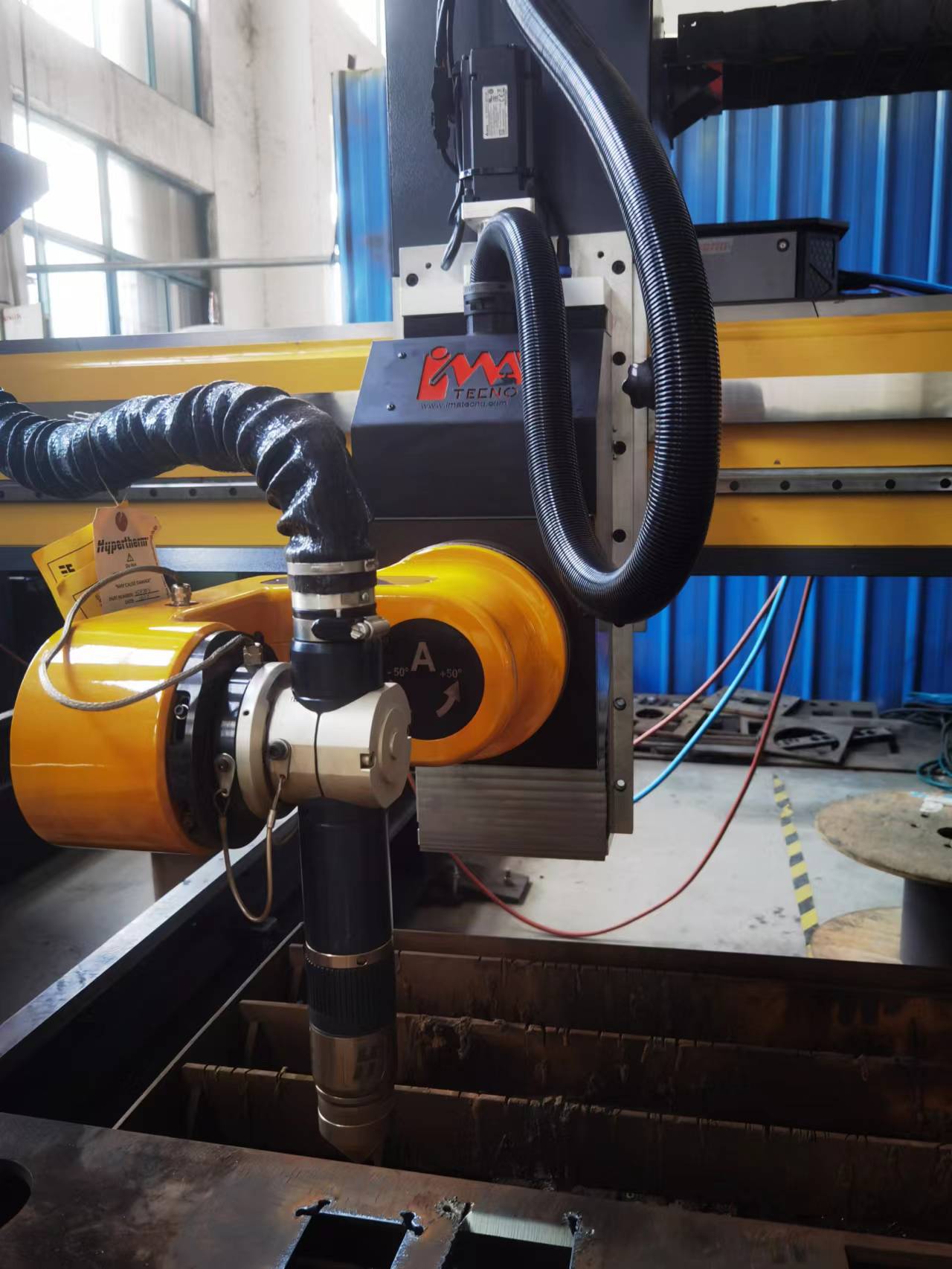

9 | Bevel equipment | 1 | Italy IMA |
10 | Oxy fuel torch | 1 | US Gentec |
11 | Auto-ignition (set) | 1 | Wuxi Xiangzheng |
12 | Solenoid valve | 3 | CEME, Italy |
13 | Gas tube | 1 | Italy |
14 | Servo drive，motor | 5 | Panasonic Japan |
15 | Planetary gear box | 3 | Shimpo Japan |
16 | Linear guide track | 1 | Taiwan PMI |
17 | Sliding block automatic oiling device | 1 | Nanjing Xunrun |
18 | Nesting software | 1 | American Hypertherm Pronest with bevel function |
