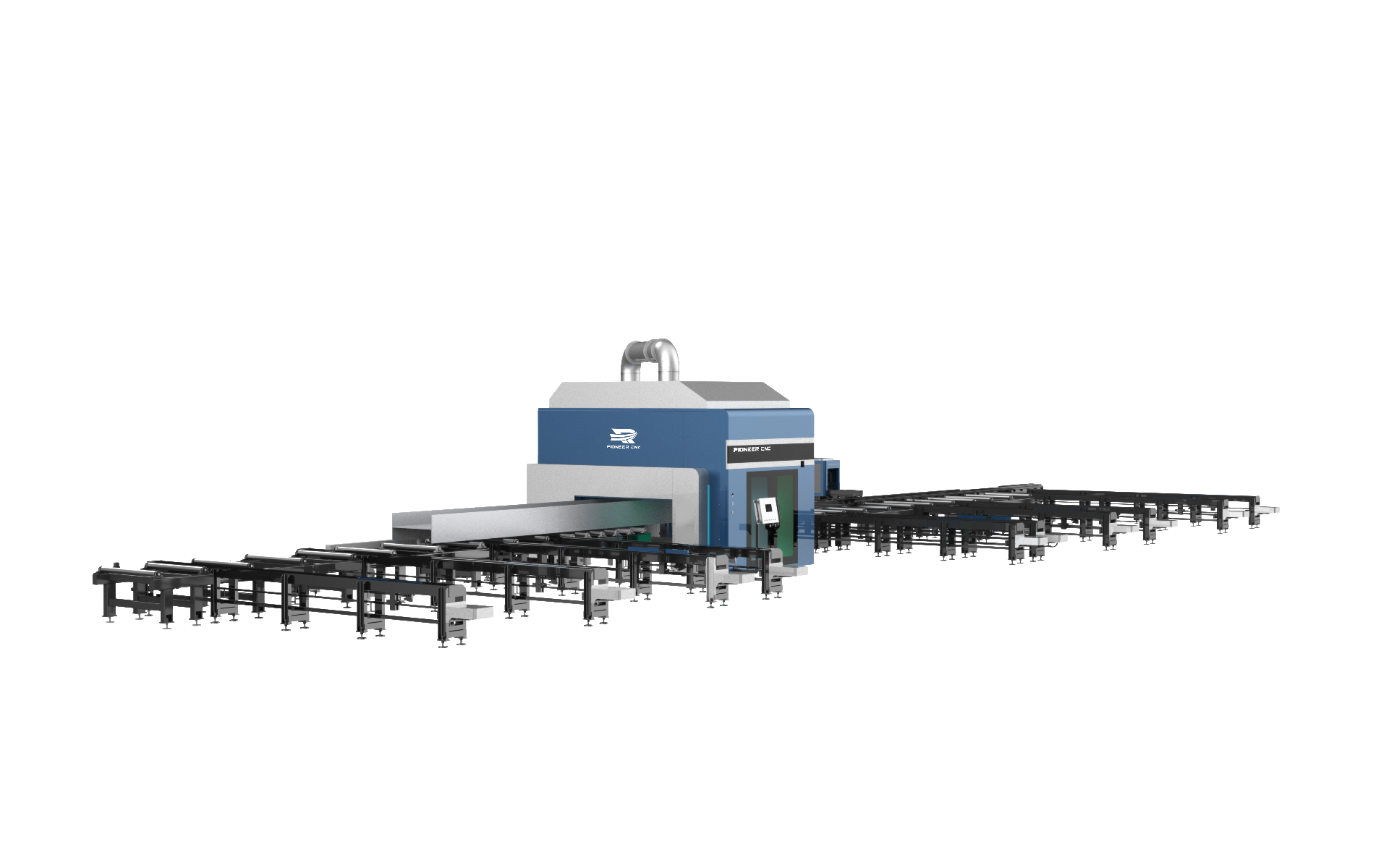

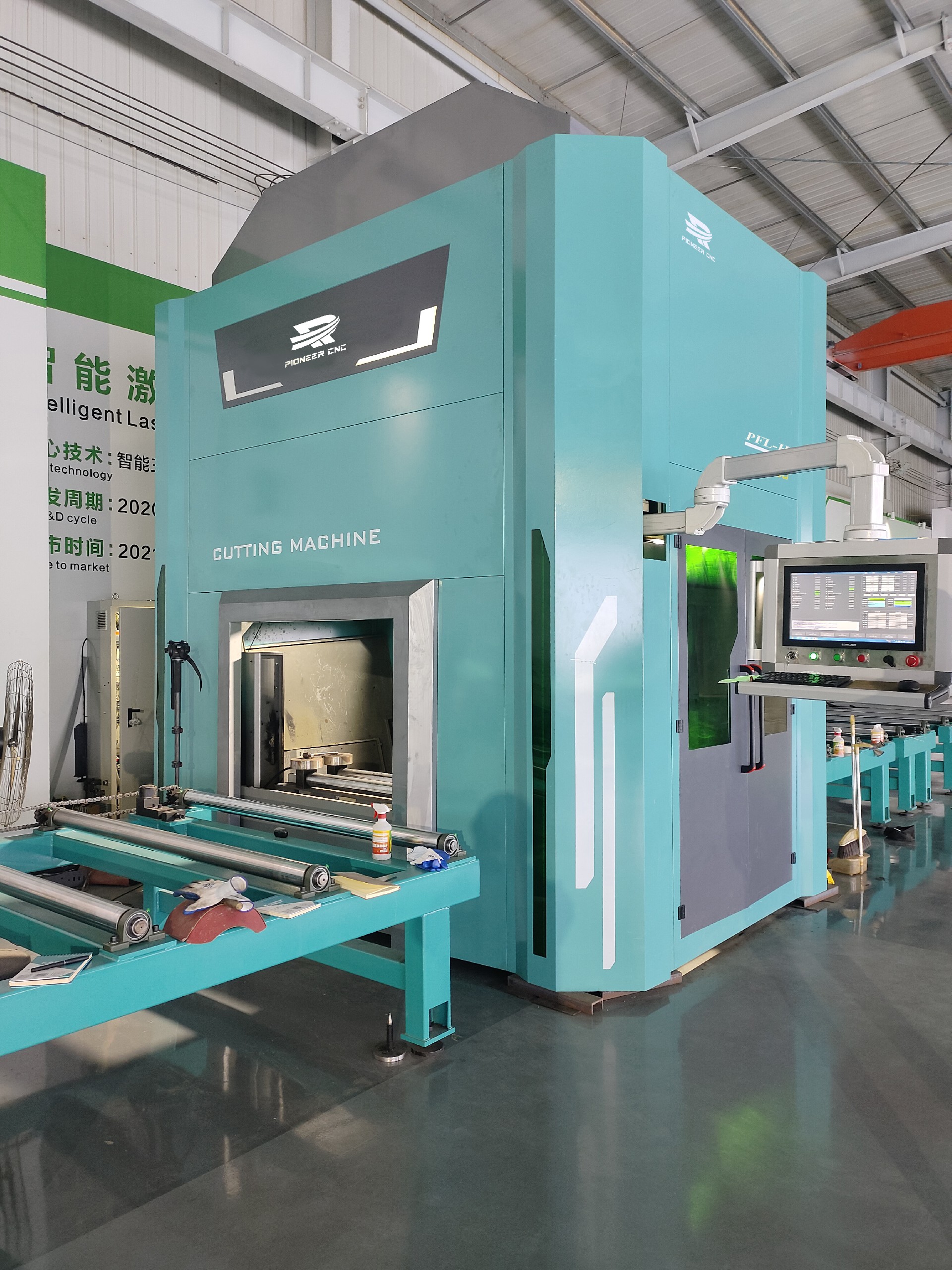

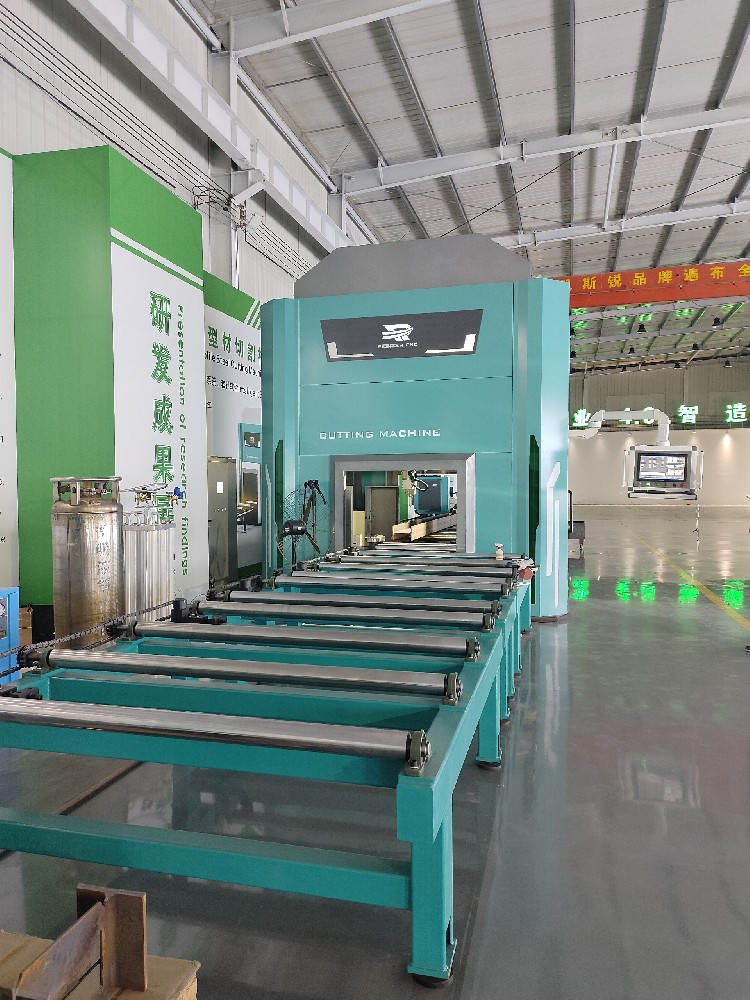

H Beam Cutting Machine used for cutting h beam , I beam , channel beam , angle beam in one machine ,it can cut and bevel in one time , widely used for steel structure industry .

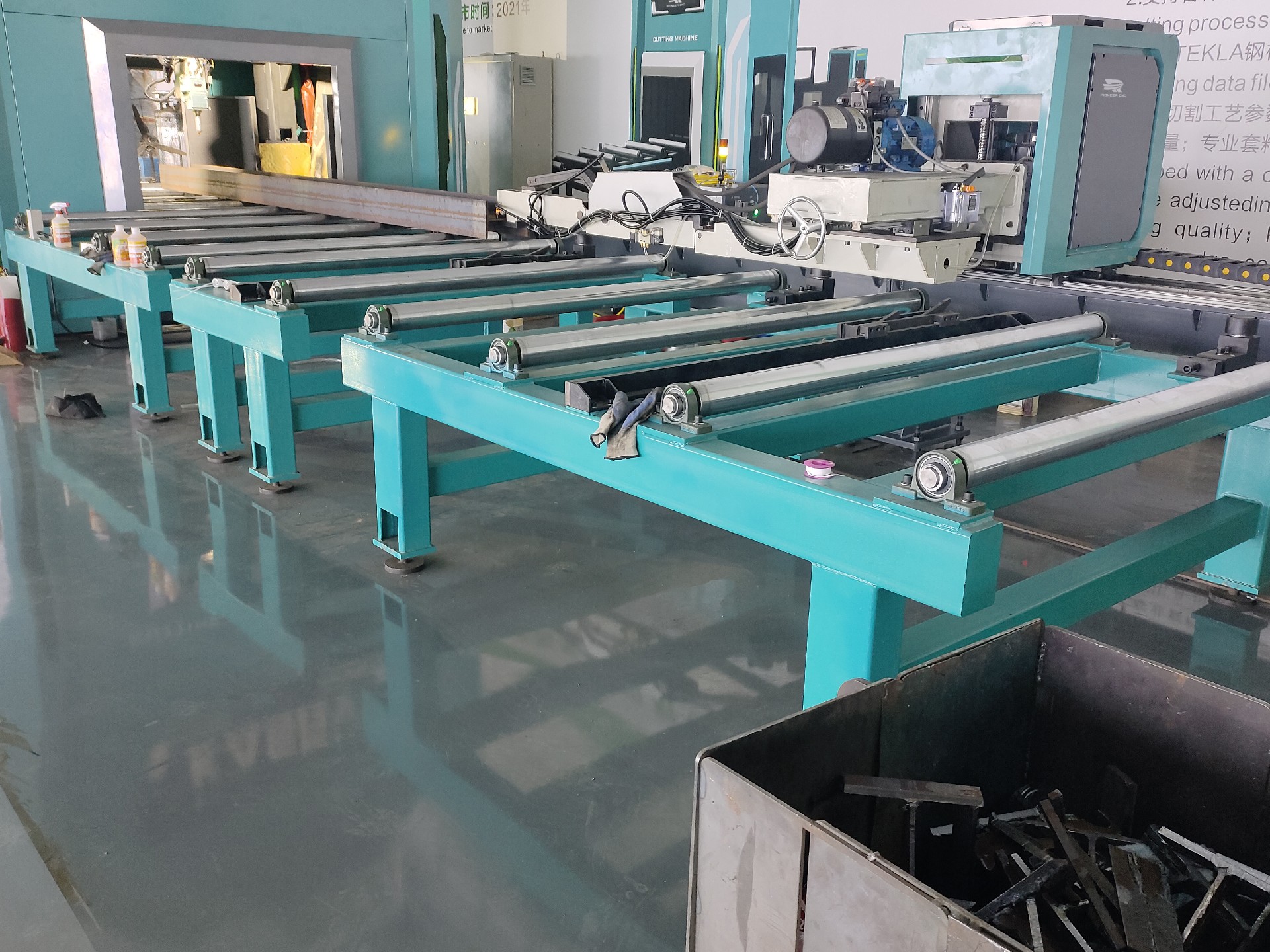

It include cutting unit , feeding in , feeding out , auto loading and unloading part .
CONFIGURATIONS PARAMETRES
Profile specifications | Cutting channel steel pipe diameter | Φ = 80 ～800 mm |
Cutting H-beam pipe diameter | Φ = 80 ～ 800 mm | |
Cutting angle steel diameter | Φ = 80 ～ 800 mm | |
Cutting range of I-beam | Φ = 80 ～800 mm | |
Effective cutting workpiece length | 12000mm |
Cutting material | Mainly used for thermal cutting of intersection lines , flat plates and ends of various pipeline systems . Applicable workpiece materials : low carbon steel (copper nickel , stainless steel , aluminum, galvanized materials require plasma cutting) | |

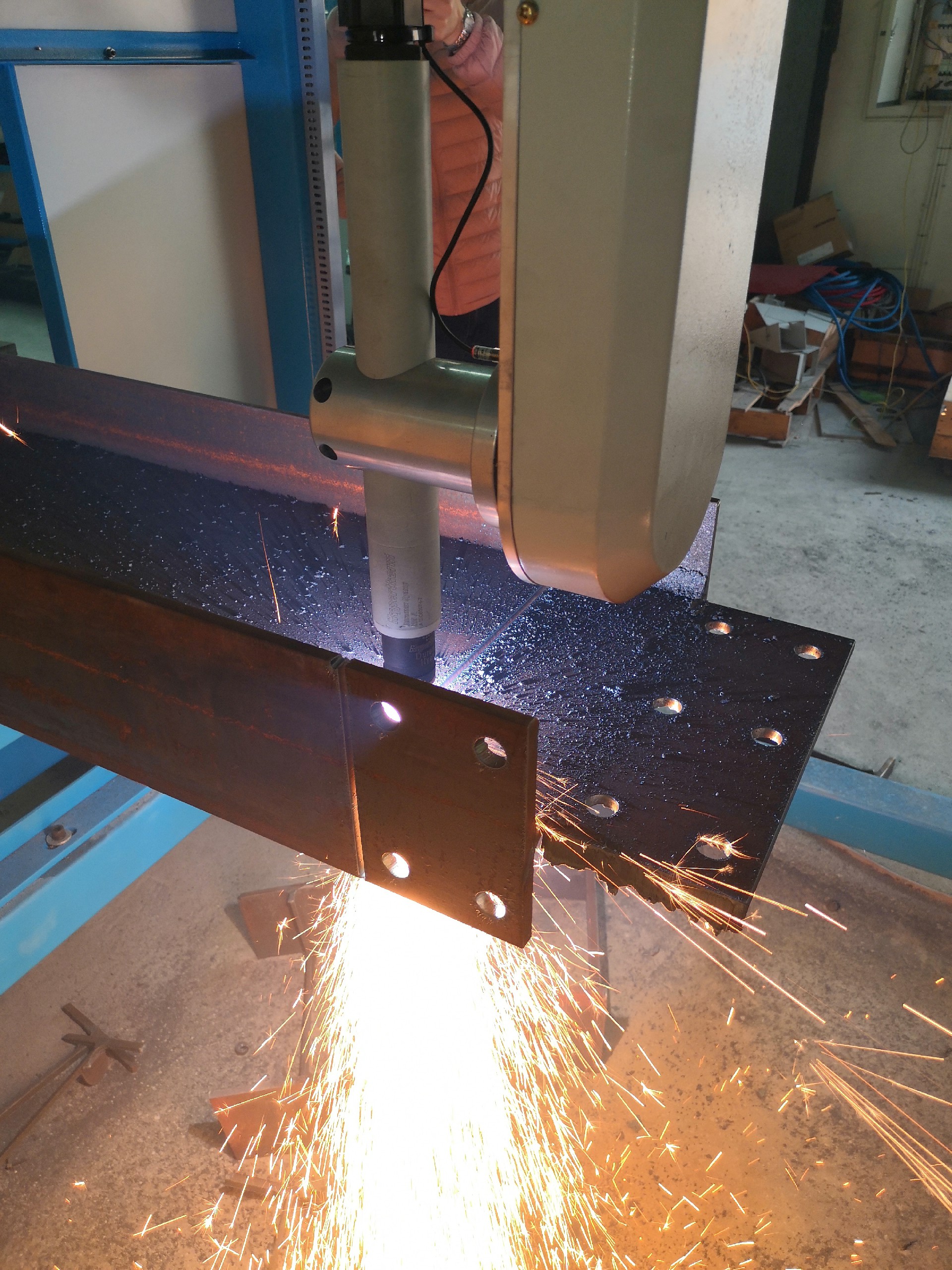

Cutting form | Cutting method | Plasma +flame |
Plasma cutting pipe wall thickness | 1-40mm | |
Machine accuracy | Required workpiece ovality | ≤ 1 % |
Cutting speed | 10 ～ 3 000mm/min | |
Movement Speed | 10 ～ 6000 mm/min | |
Cutting length accuracy | ± 1.5mm | |
Cutting accuracy implementation standard | According to ISO9013-2002 , ISO8206-1991 and JB/T10045.4-1999JB | |
machine tool | Feeding | Hydraulic tightening automatic mechanical claw |
Cylinder rolling machine tool | 6 | |
weight | Maximum weight of pipe to be cut | 3500 Kg |
color | Device Color | Corporate color (blue) ,it can be customized |
