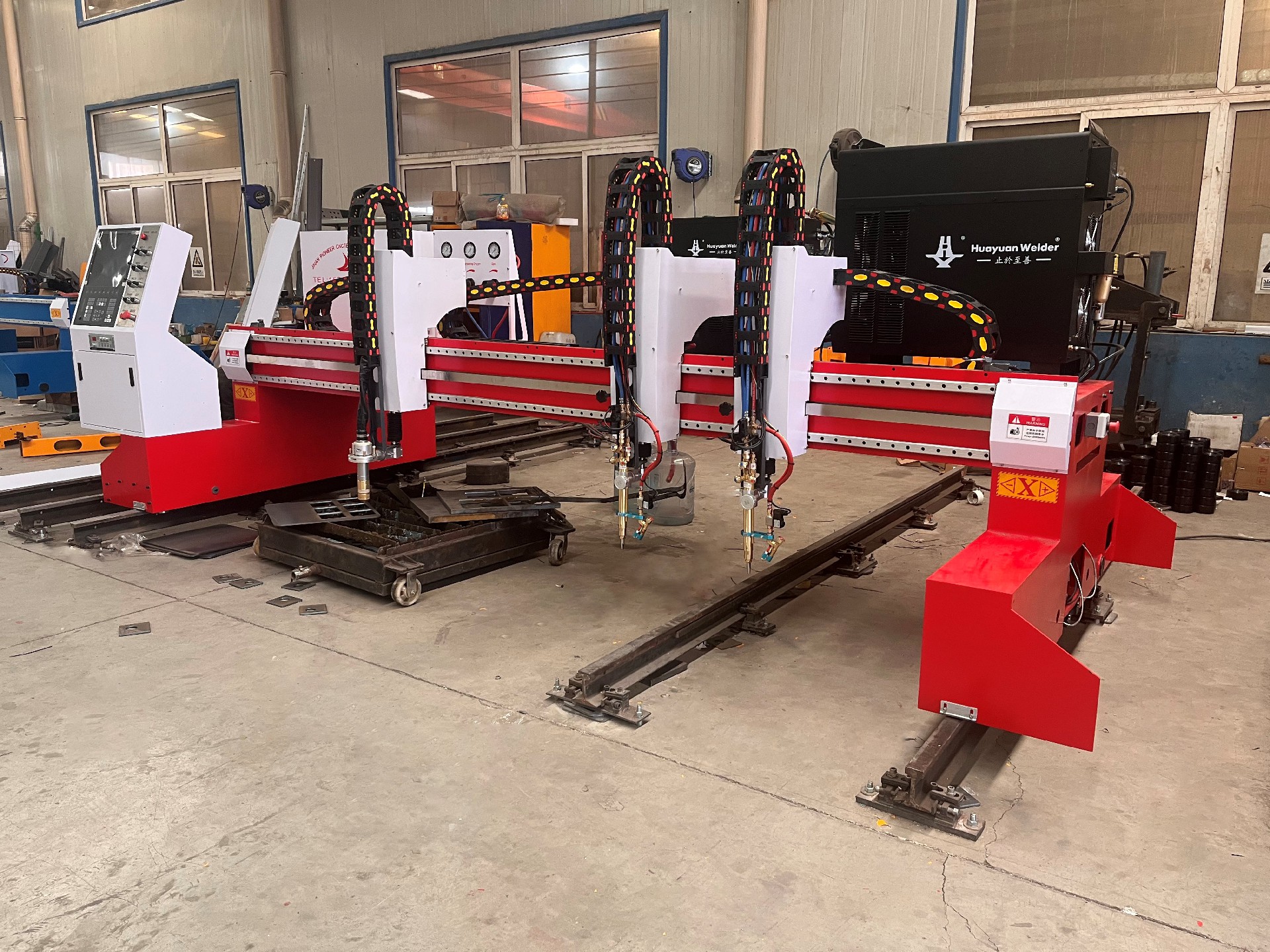

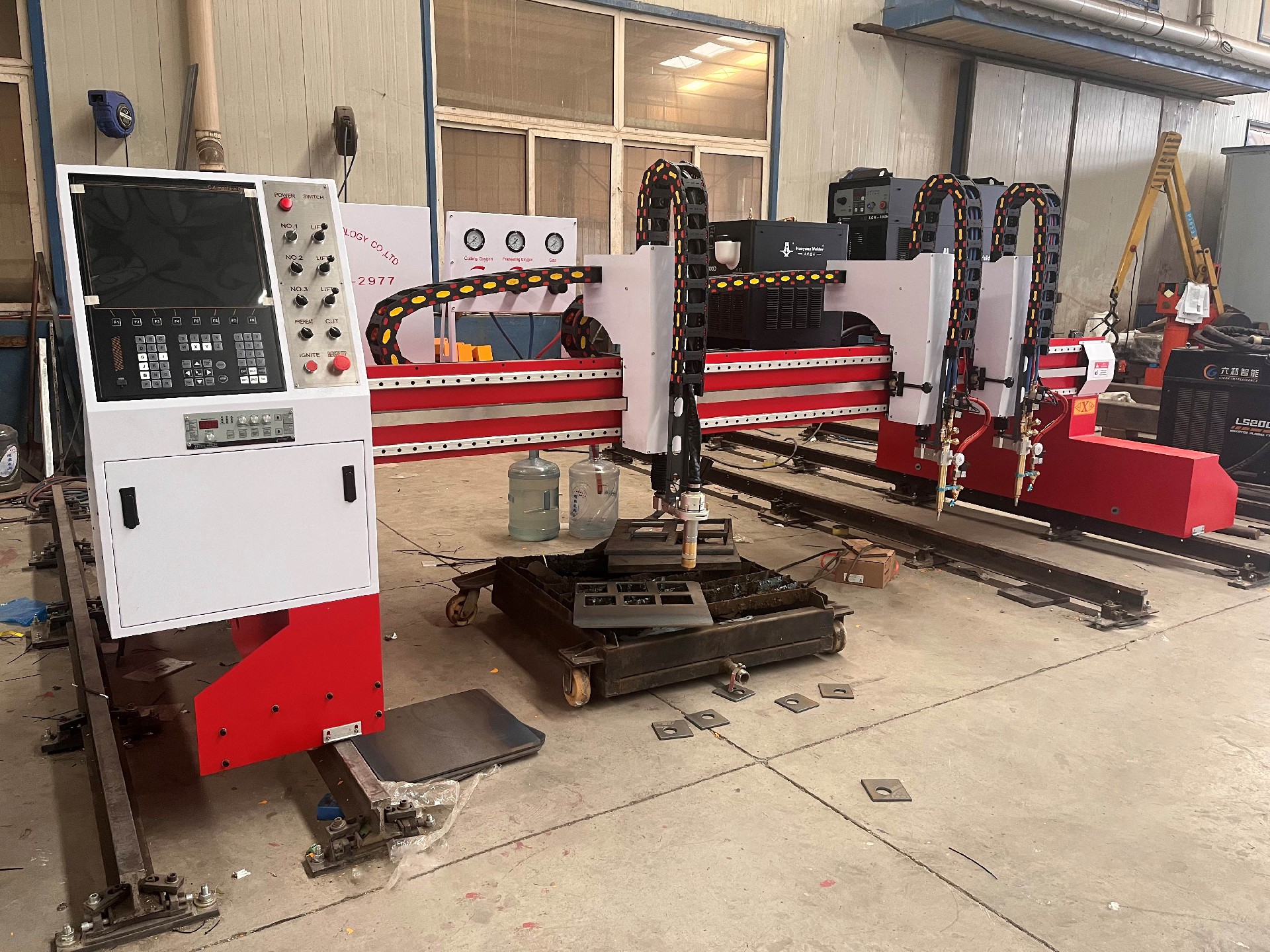

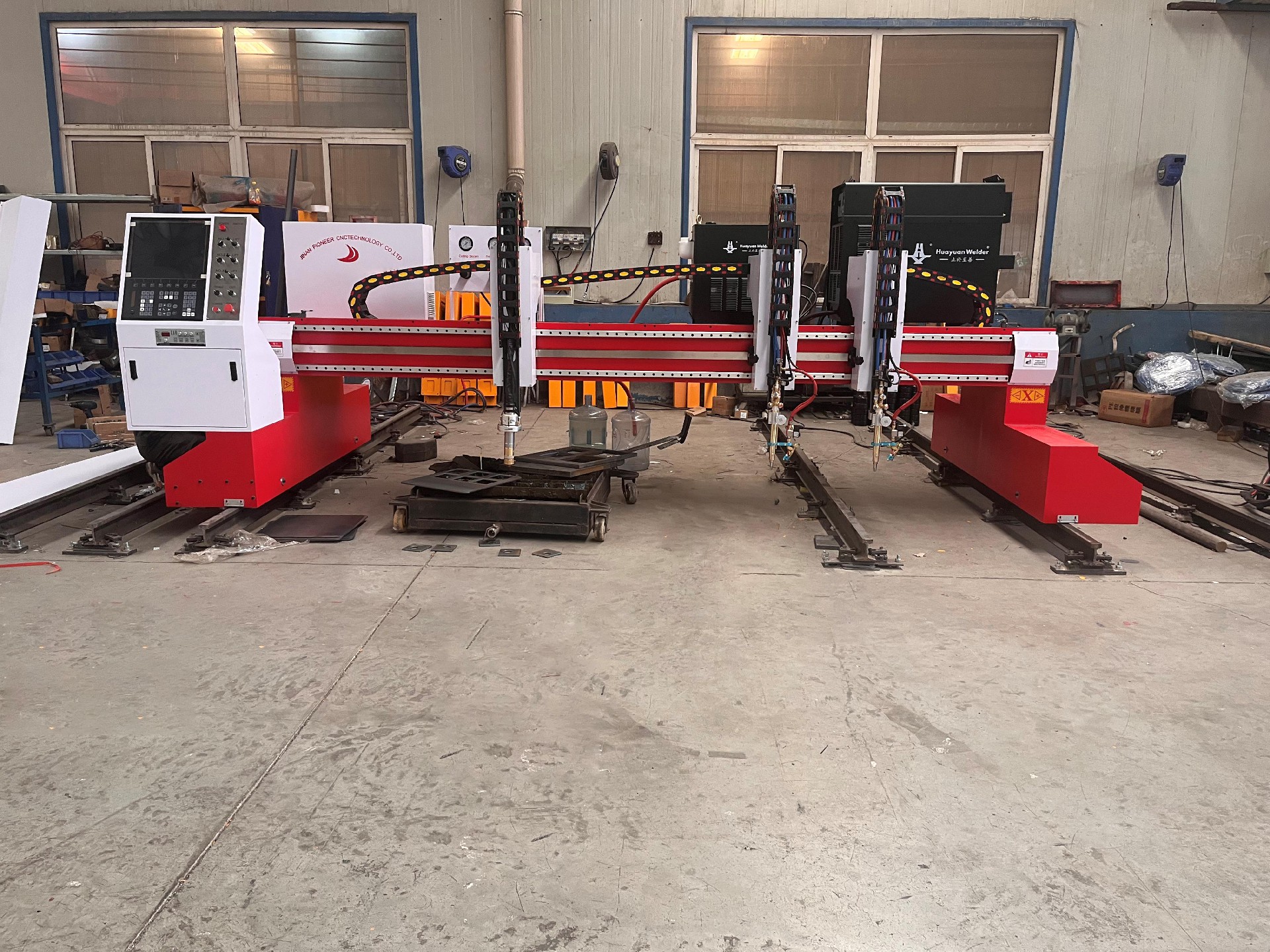

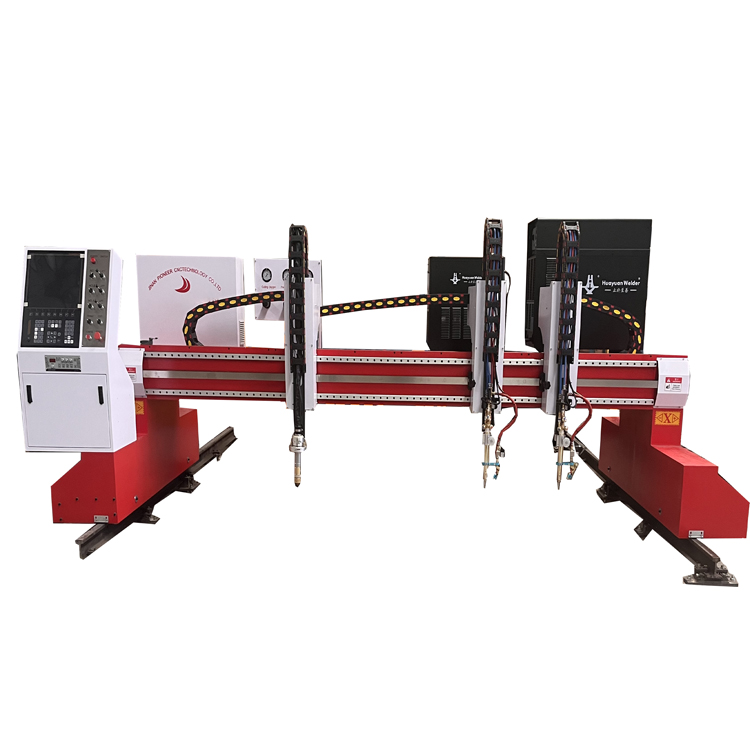

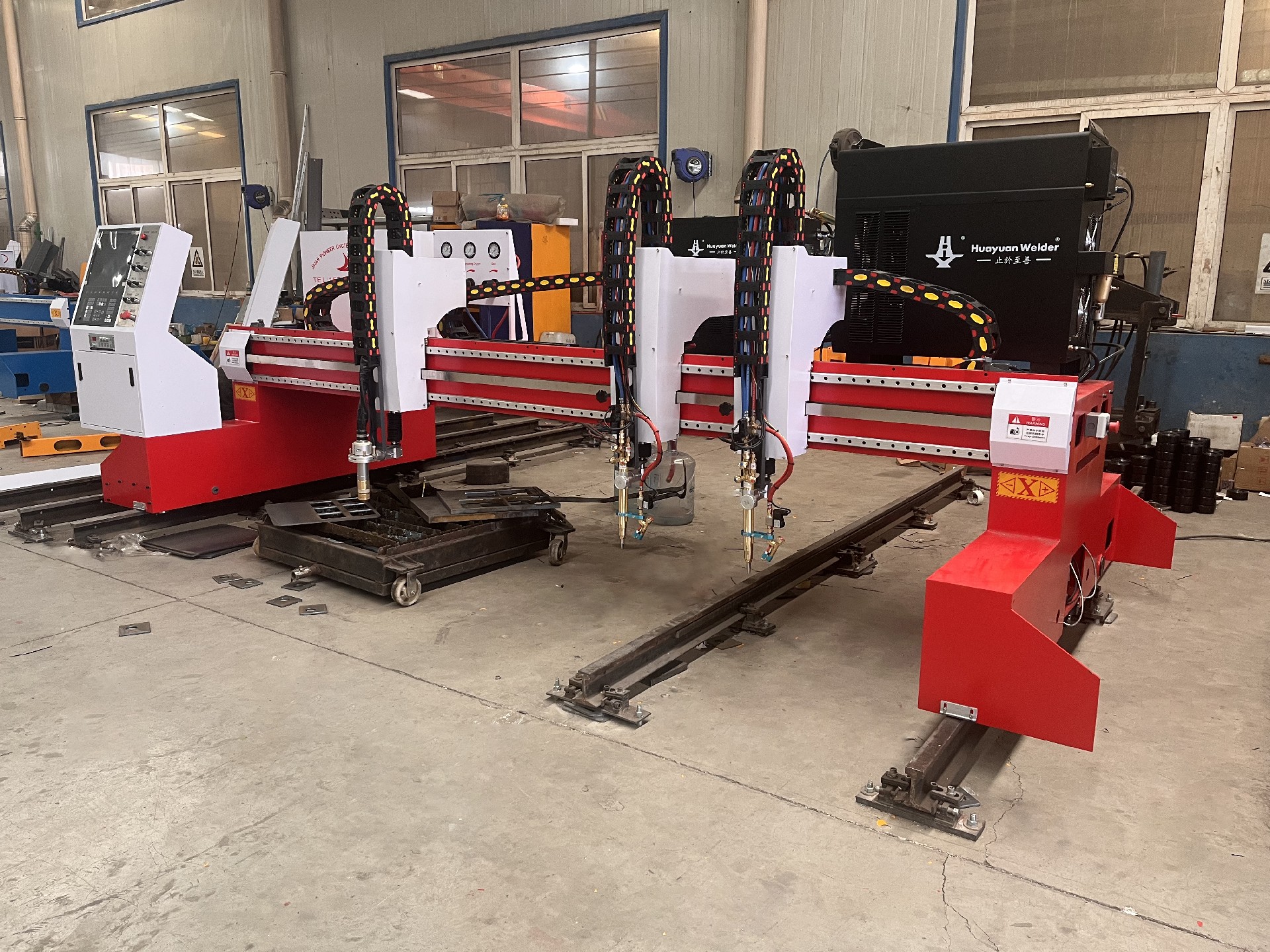

Gantry cnc plasma flame cutting machine used for cutting large and thick metal plate , widely used for metal processing , steel structure ,Shipyard ect industry
Cutting method :plasma +flame , it can also add straight cutting
Software :Starcam or Fastcam
Details configuration :
Items | Parameters |
Effective cutting width | 1500-5000mm |
Effective cutting length | 6000-20000mm |
Machine width | 3000/4000/5000/6000mm |
Machine length | 8000-22000mm |
Plasma | plasma power for reservation |
Flame | flame torch for reservation |
Moving speed | 0-8000mm/min |
Cutting Speed | 0-3500mm/min |
Software | Fastcam software |
Control system | F7600 |
Speed error | ≤±5％ |
Auto Height Controller | YES |
Motor | Japanese Panasonic servo motor with reducer |
Drive mode | Bilateral drive |
Auto-precision | ≤±1.0mm |
Longitudinal linear precision | ±0.2mm/10m |
