straight pipe inner wall welding equipment is our research and development of a new generation of automatic surfacing equipment, using open-arc surfacing process, the equipment has a high degree of automation, the design is in line with the artificial mechanics, the equipment is simple to operate, with the welding parameter memory storage, wireless remote control, Air cooling control, abnormal information alarm shutdown, etc., the equipment basically does not require human intervention in the welding process.
Techinal date :
NO. | Name | Model |
1 | Equipment rack | PSW-380-2-1 |
2 | Power rotating device | PSW-380-2 |
3 | Lifting slide | PSW-380-2-2 |
4 | Traverse device | PSW-380-3 |
5 | Welding torch holding mechanism | PSW-380-4 |
6 | Wire feeder | PSW-380WF |
7 | Oscillating device | PSW-380SW |
8 | Water cooled welding torch | PSW-380-500L |
9 | Cooling water tank | PF-10L |
10 | PLC | XINJE-XD5 |
11 | Touch screen | TGA63S/AH-102L |
12 | Wireless remote control | PF-485 |
13 | Rotary driver | 2ND2283 |
14 | Lift driver | SR8-Plus |
15 | Traverse driver | SR8-Plus |
16 | Wire feed driver | SR8-Plus |
17 | Oscillating machine | OPG-05SGN |
18 | Rotating machine | 110 Stepper motor |
19 | Elevating motor | 86-80 Stepper motor |
20 | Wire feed motor | 86-80 Stepper motor |
21 | Welding wire guide holder | PF-280DS |
22 | Extension jaw | PF-380KZ |
23 | Welding positive and negative electrodes | 120² |
24 | Signal transmission line | |
25 | chuck | SMW-380 |
26 | Dust extraction pipe | PF-φ76 |
27 | Cooling water pipe | PF-φ10 |
28 | Dust cover | PF-15 |

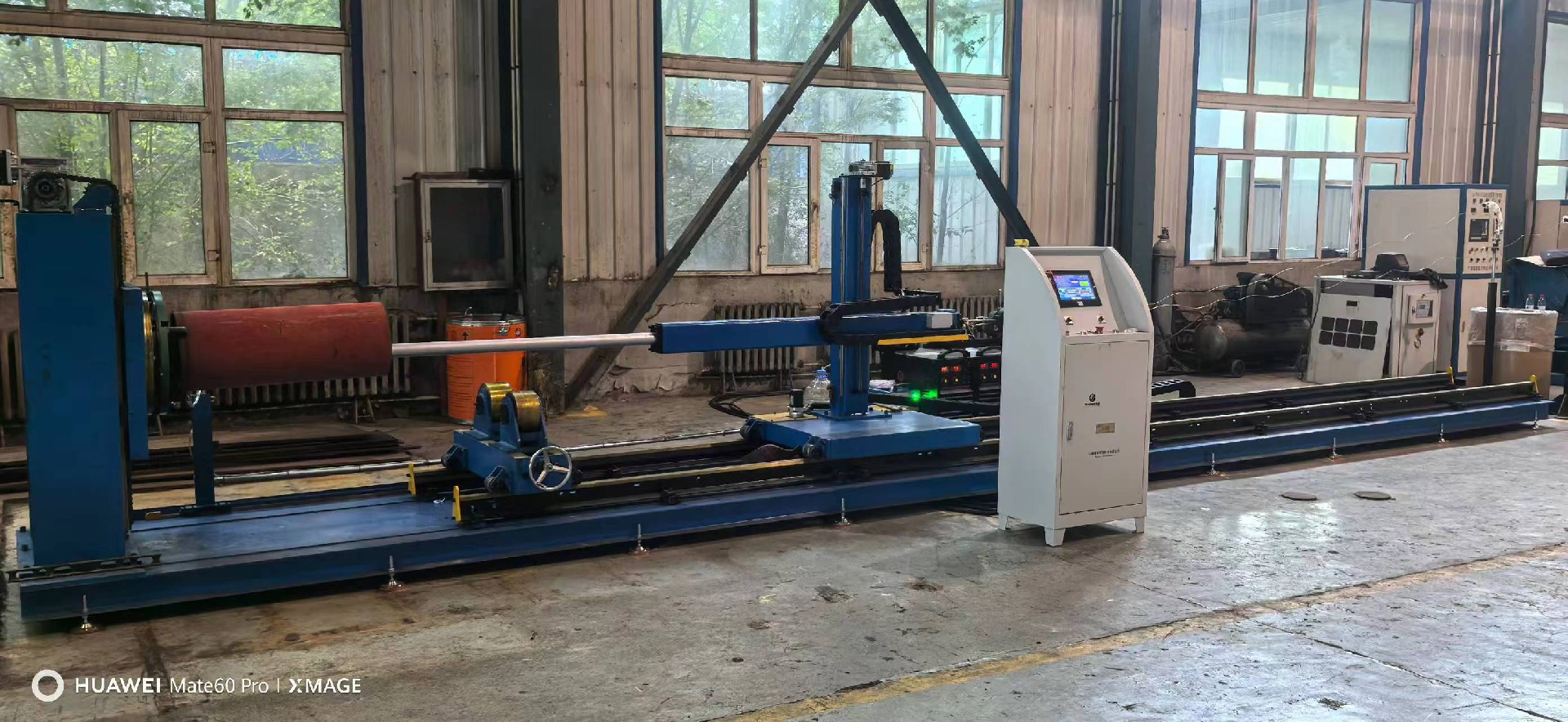

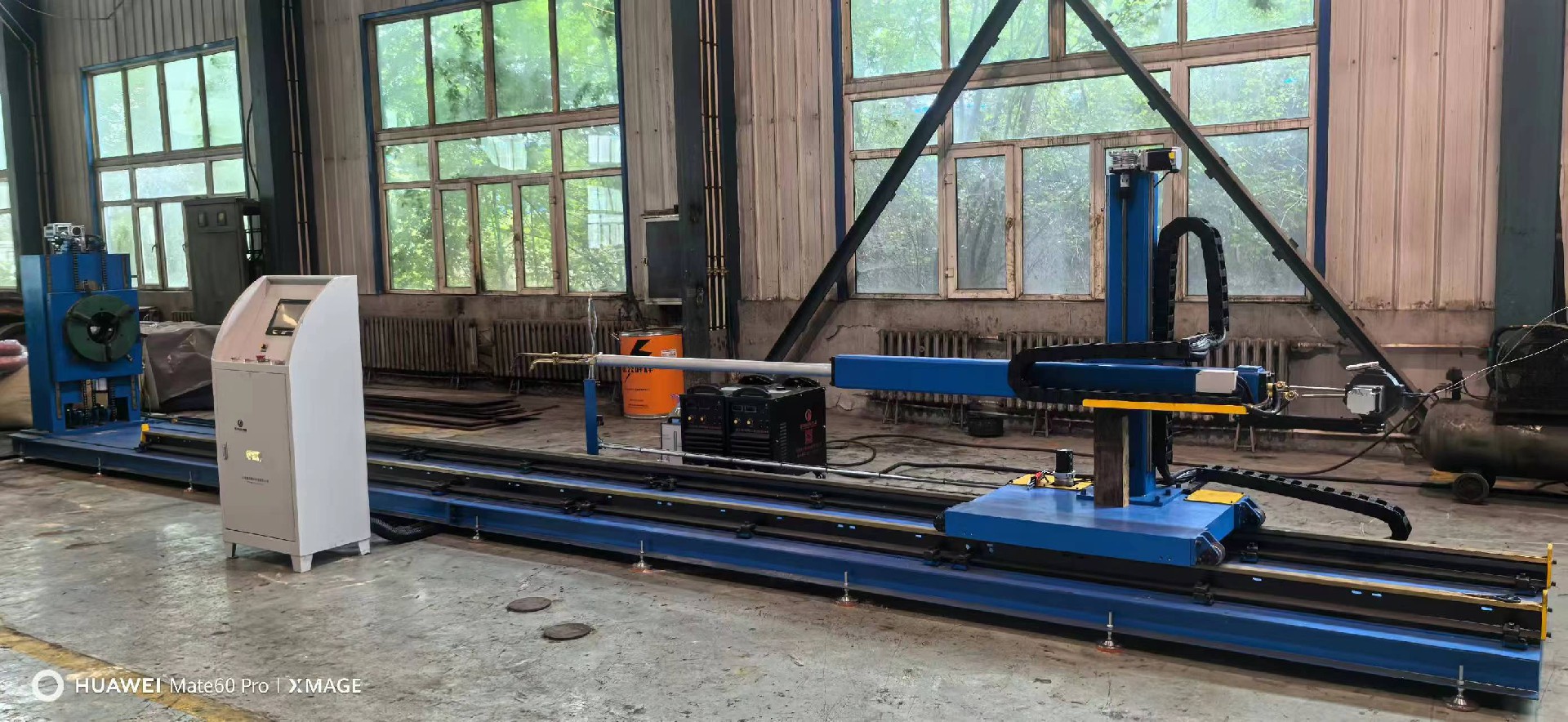

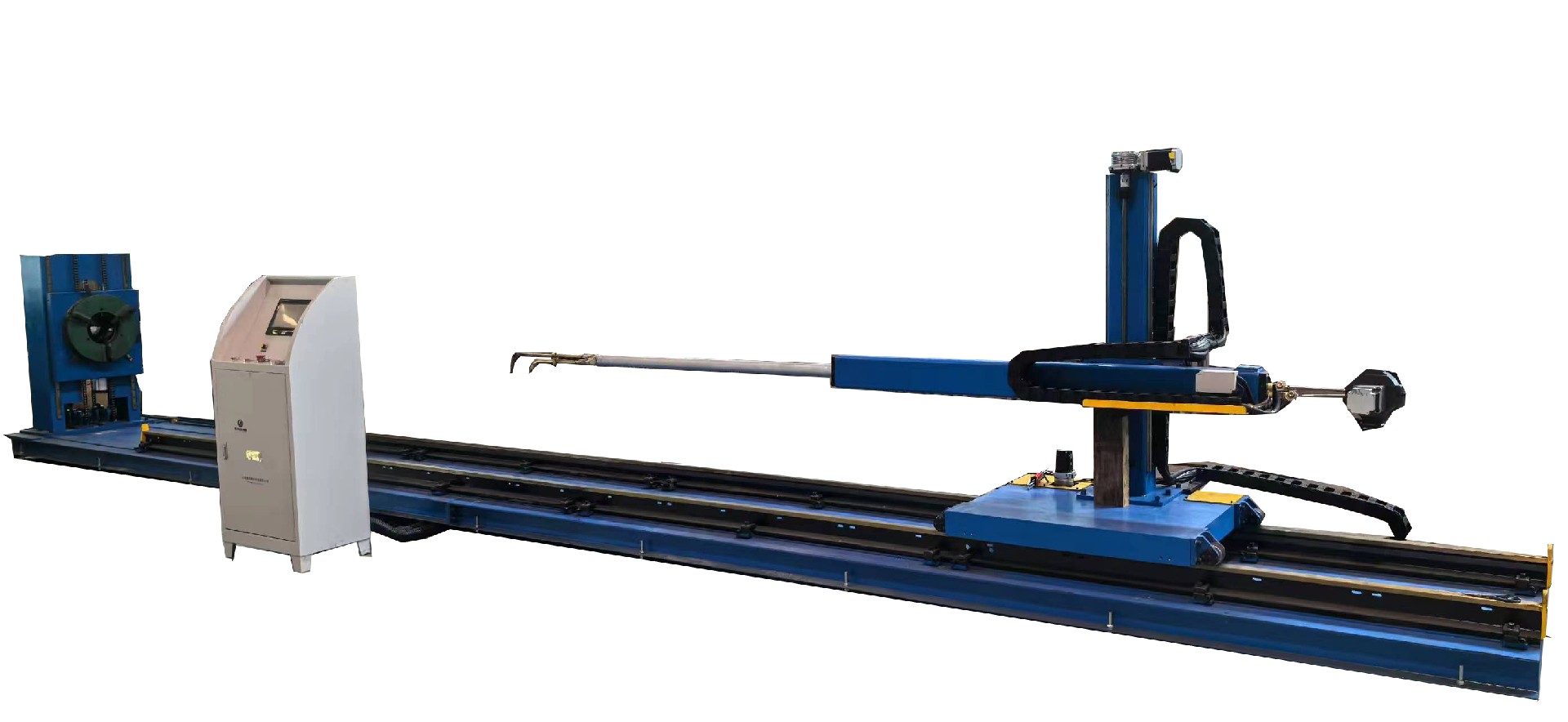

Machine picture :

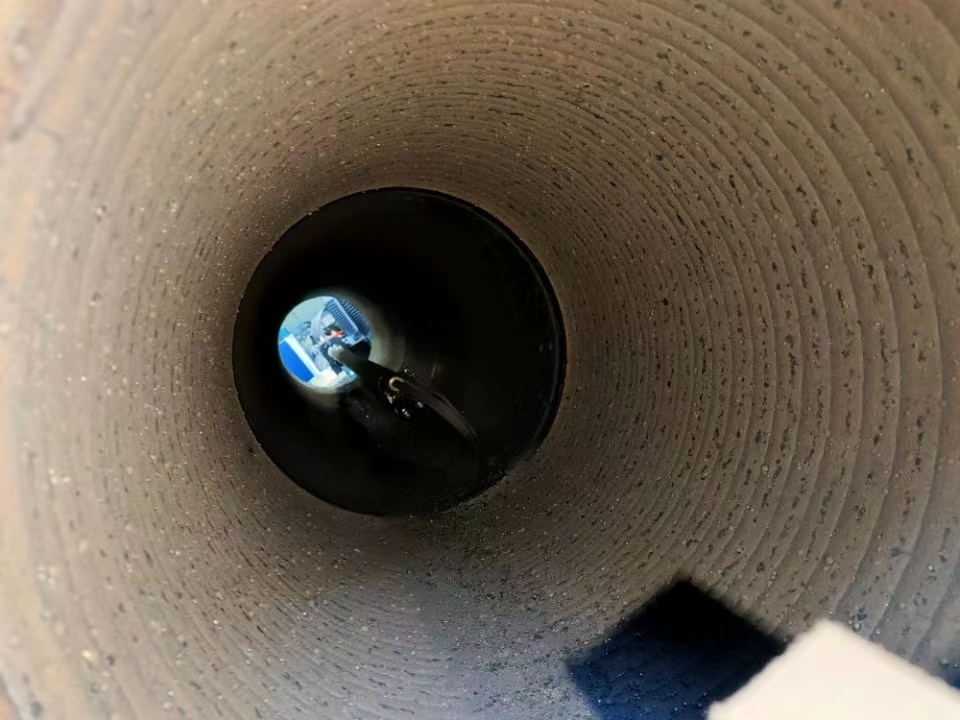

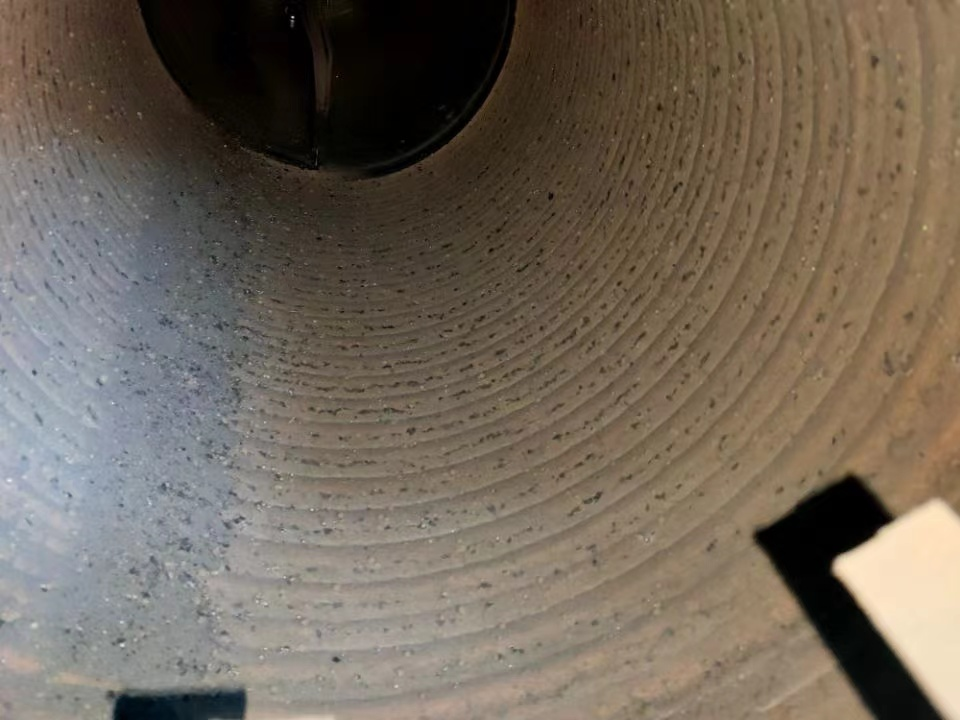

Sample :
