CNC Welding robot with double rails , positioner .
Advantage :Double Robot can be move , workpiece and rotary 360 degree , higher working efficiency

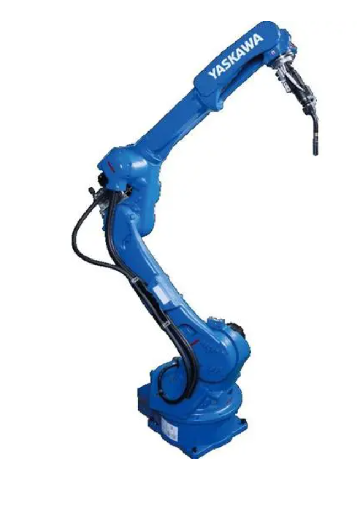

Robot Model :YASKAWA MOTOMAN-AR2010
Robot Model | MOTOMAN-AR2010 |
Axis | 6 Axis |
Horizontal extension length | 2010MM |
Max Payload | 12kg |
Robot weight | 260kg |
Repeat position accuracy | ±0.03mm |
Controller | YRC1000 |
Protection level | body: IP54, wrist axis: IP67 |
Installation: | floor-mounted, inverted, wall-mounted, |
Function : | arc welding, laser processing, handling, other |

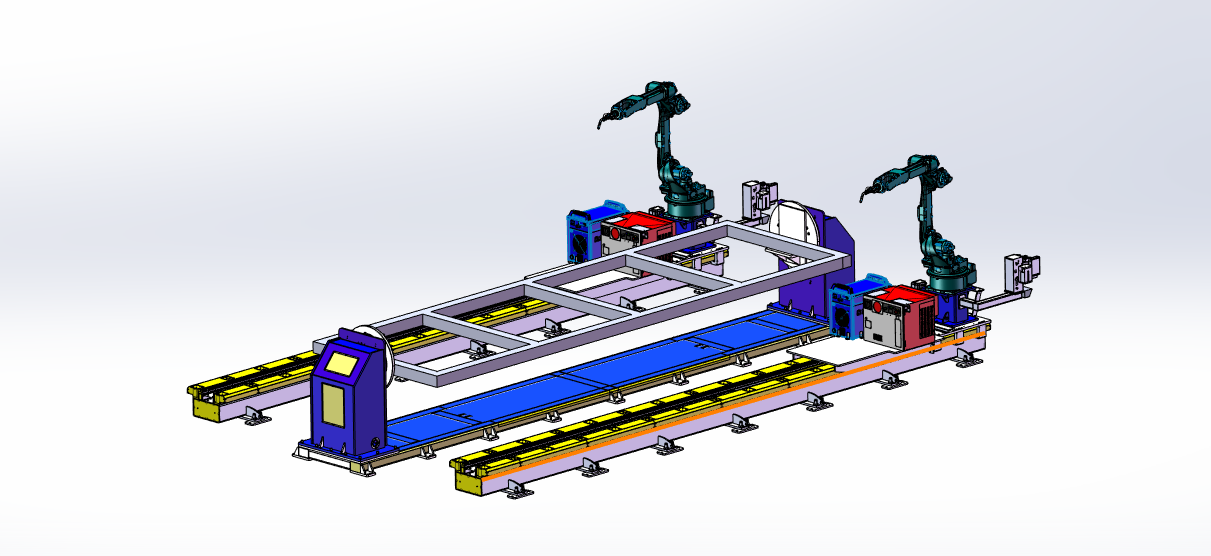

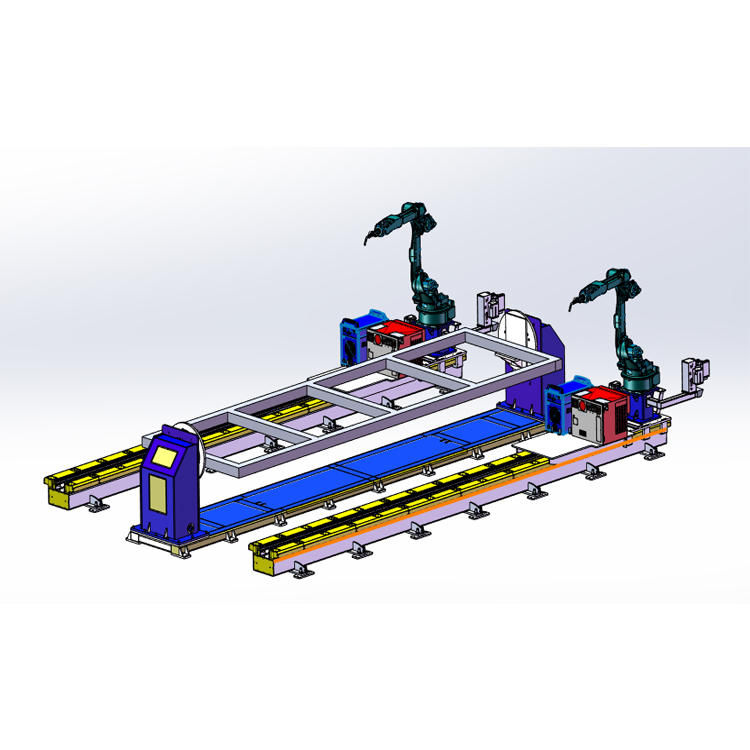

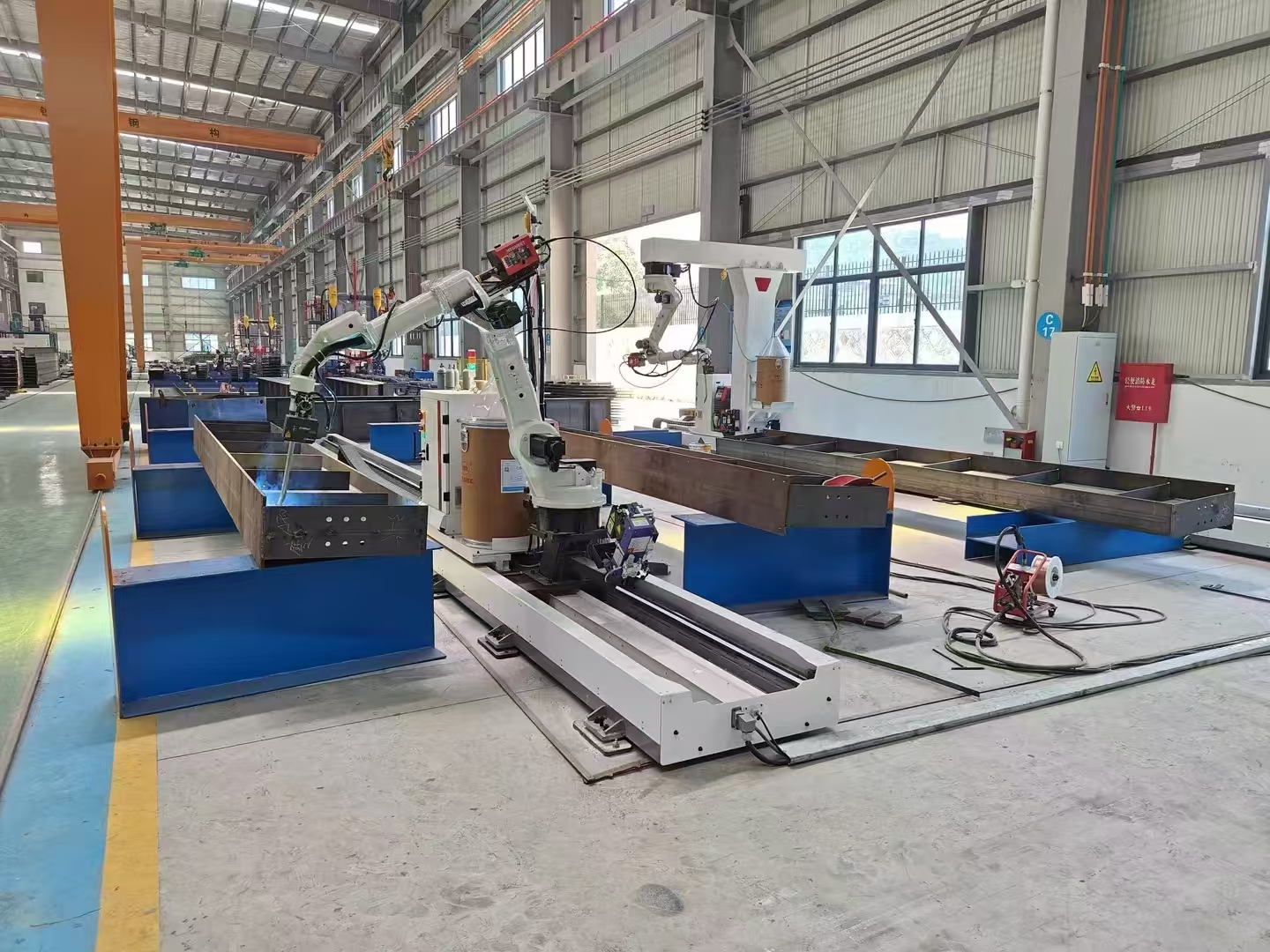

Double guide rail ,double robot ,with positioner
