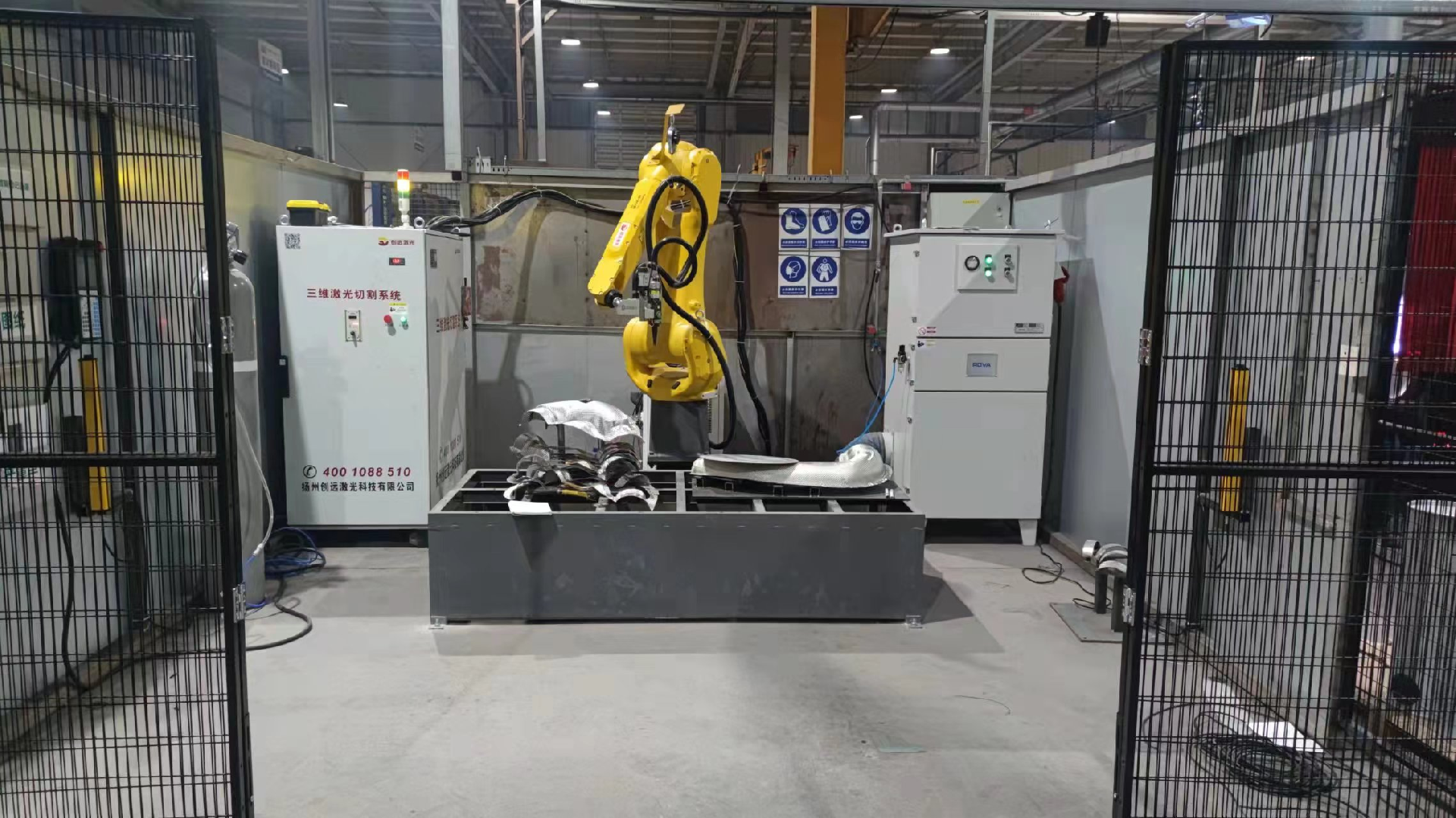

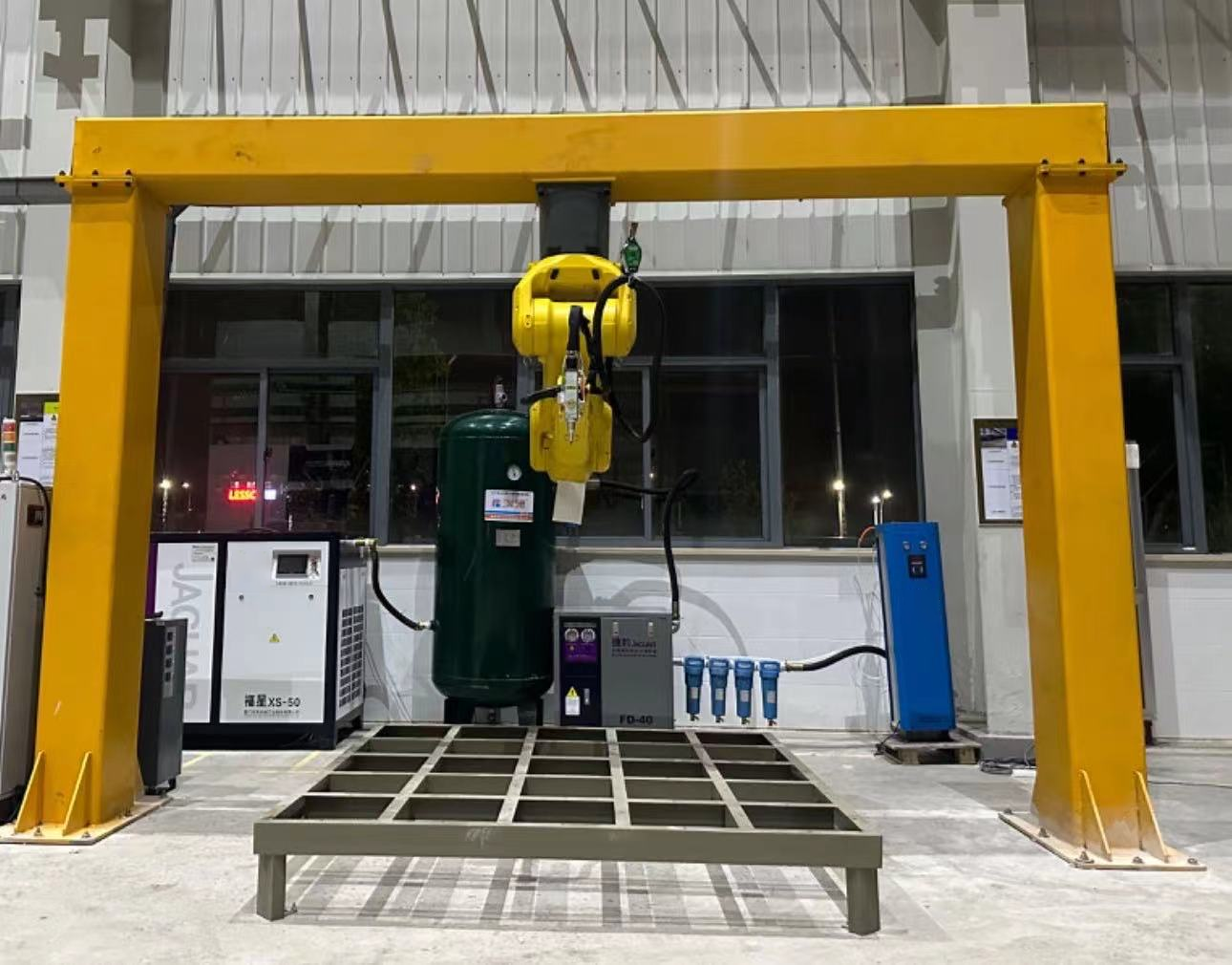

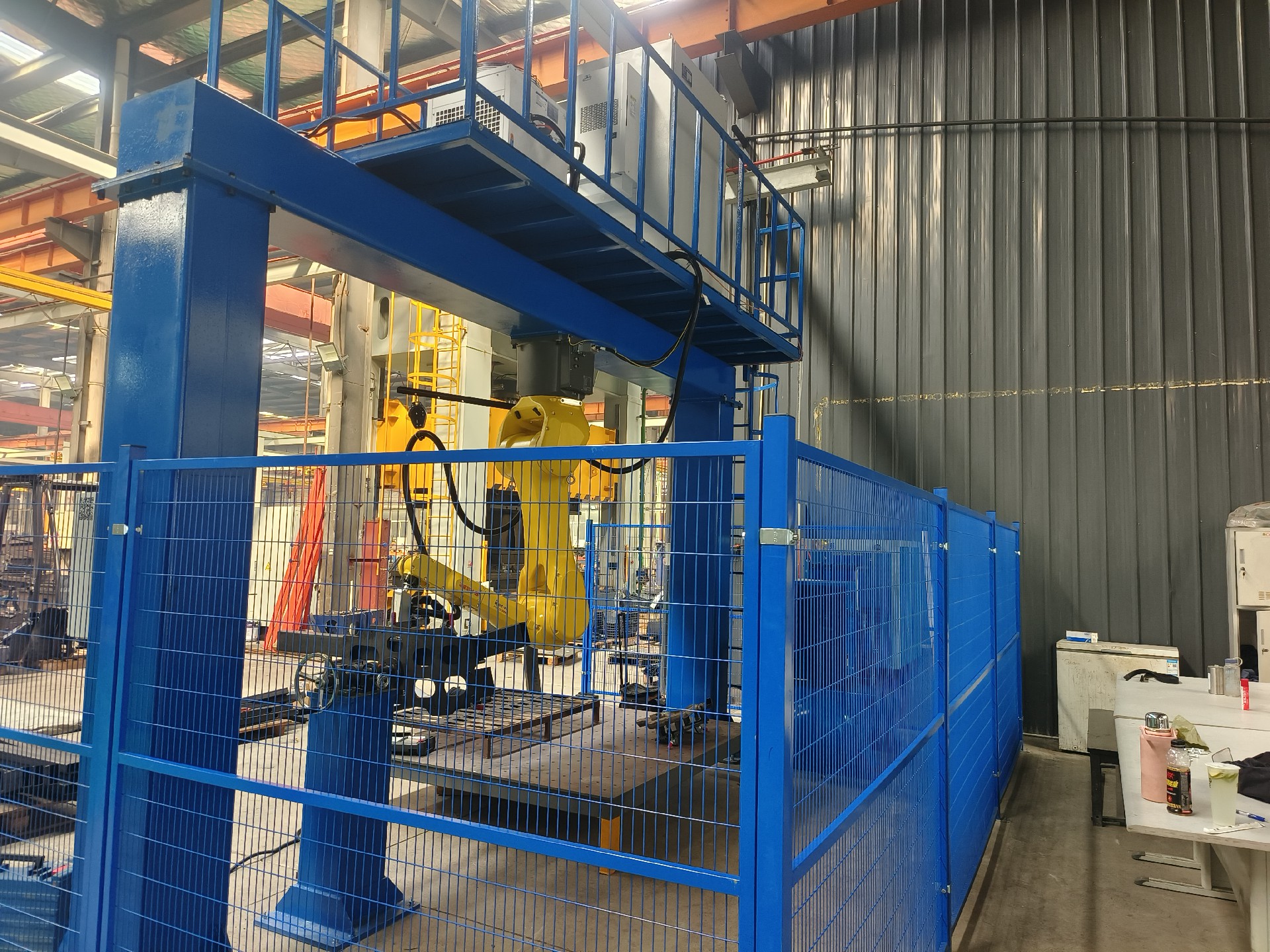

3D laser cutting system is the perfect combination of robot and laser flexibility, with lightweight three-dimensional anti-collision cutting head, to achieve three-dimensional cutting, very suitable for three-dimensional cutting metal parts.
Detailed configuration :
NO. | subsystems | Part Name | Brand | model number |
1 | laser generator | Ospri | 3KW/6KW/12KW | |
2 | water cooling system | Intelligent Water Cooler | Tongfei | 3KW/6KW/12KW |
3 |
Cutting tracking system | cutting head | Raytools | 3KW/6KW/12KW |
Tracking/amplification system | Raytools | C300 | ||
Anti-Collision Bracket for Torch Heads | Pioneer | Independent research and development | ||
Cutting Software | / | |||
slide | Japan THK | KR2001A | ||

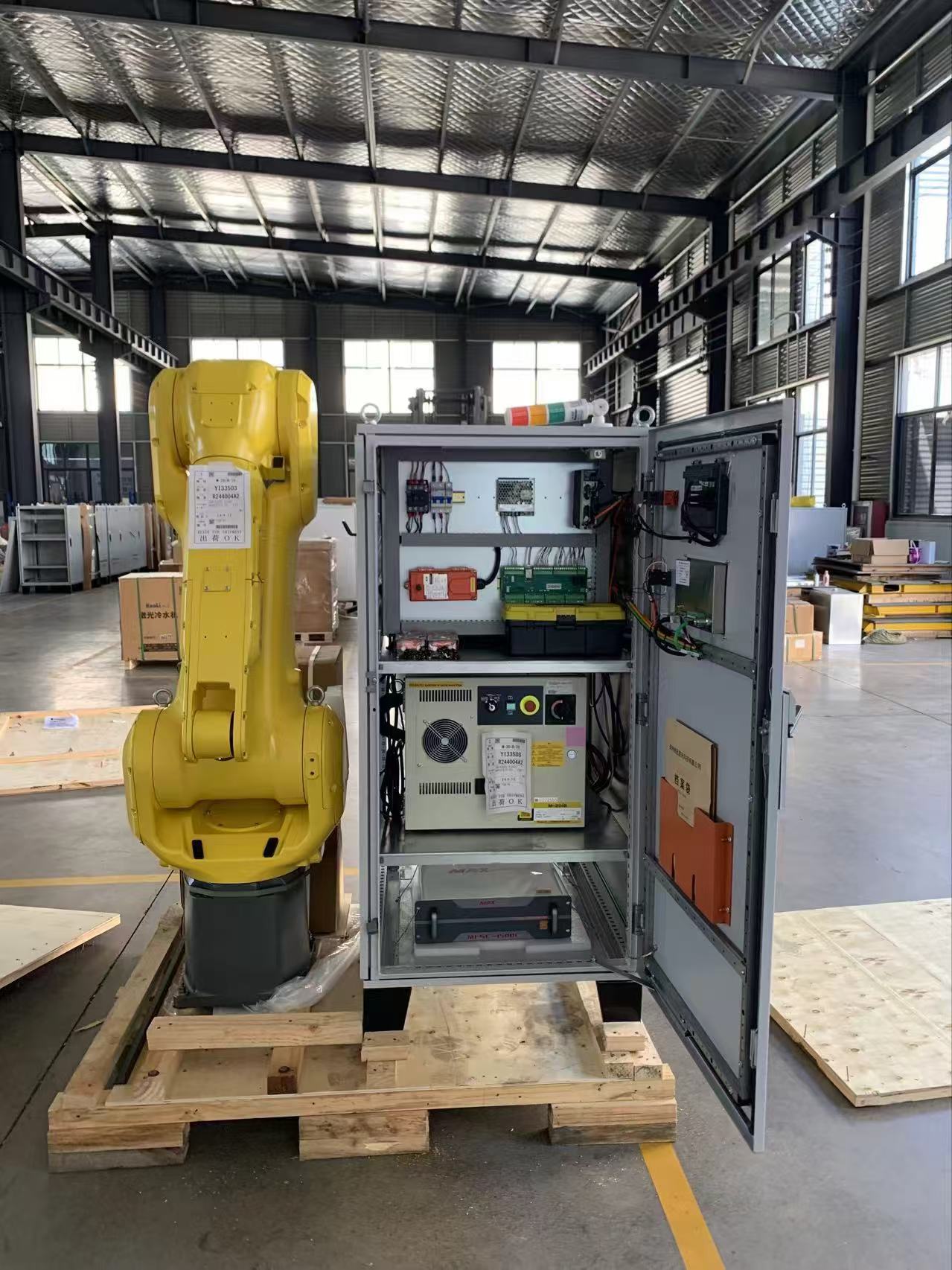

4 | mechanical person (25kg load for 3kw, 6kw, 35kg load for 12kw) | Robot | Japanese FANUC | M-20iD (arm length 1.83m) |
Mate Cabinet | ||||
transformers | domestic brand | 3kva | ||
5 |
Micro controller intelligence control system | Laser Pulse Control | Pioneer | Independent research and development |
Touch screens | Kunlun TongTai | TCP7 inch | ||
servo drive | Panasonic Japan | MADLT05SF | ||
Solenoid valves/pneumatic components | AIRTAC /SMC | High Pressure/Low Pressure | ||
cable | Panasonic Specialized Cable | Twisted Shielded Flex Cable | ||
Remote starter | TELECRANE | wireless remote | ||
Oxygen alarm display | SNS Shenchi | QPM11-NC | ||
Circuit Controls and Push buttons | ZHENGTAI | AC/ DC 24V | ||
6 | Electrical control cabinets | cabinet | Imitation of Rittal | 160A |
Control cabinet industrial air conditioning | Mayd/Rebel | 800W | ||
7 | Specialized tools, spare parts and spares | Pioneer | ||
8 | Transportation, installation, training, after-sales service | Pioneer |
