Laser welding machine 4 in 1 , it can weld , cut , clean ,clean weld seam 4 function in one machine .Material :Carbon steel , stainless steel , Aluminum , CopperIndustry Application:Laser Welding Machine widely used for cabinet industry, furniture industry, lamp industry,elevator i
CONTACT

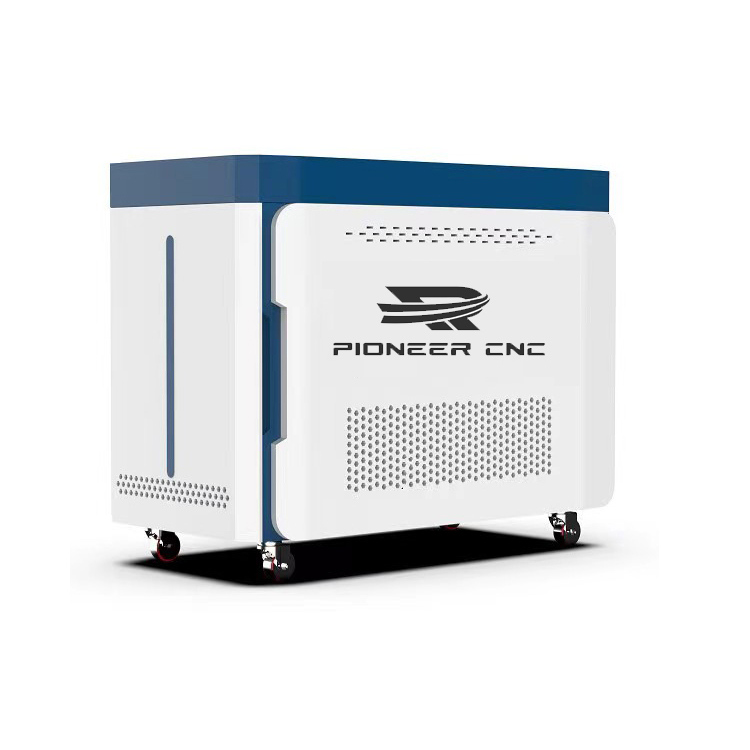

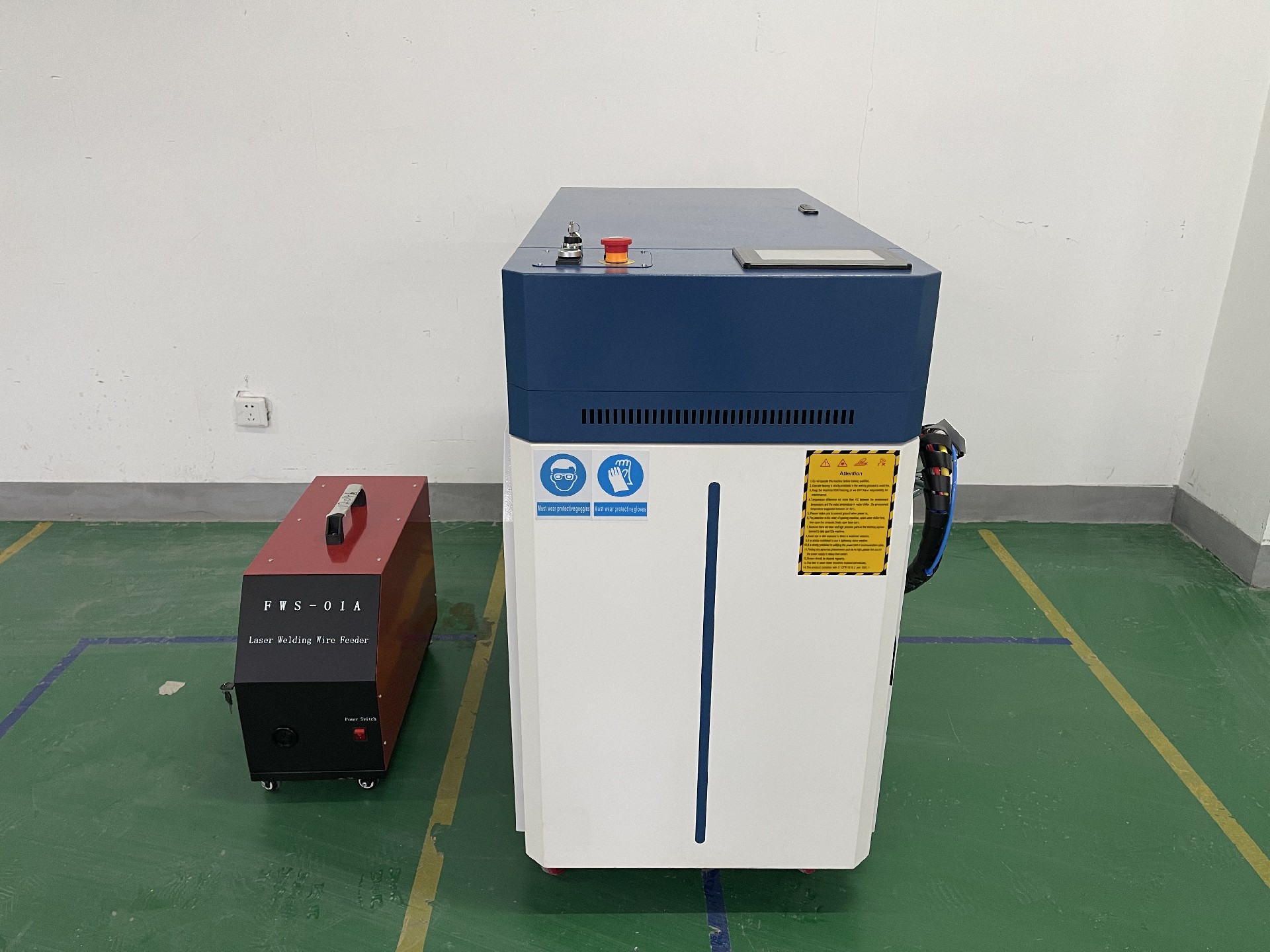

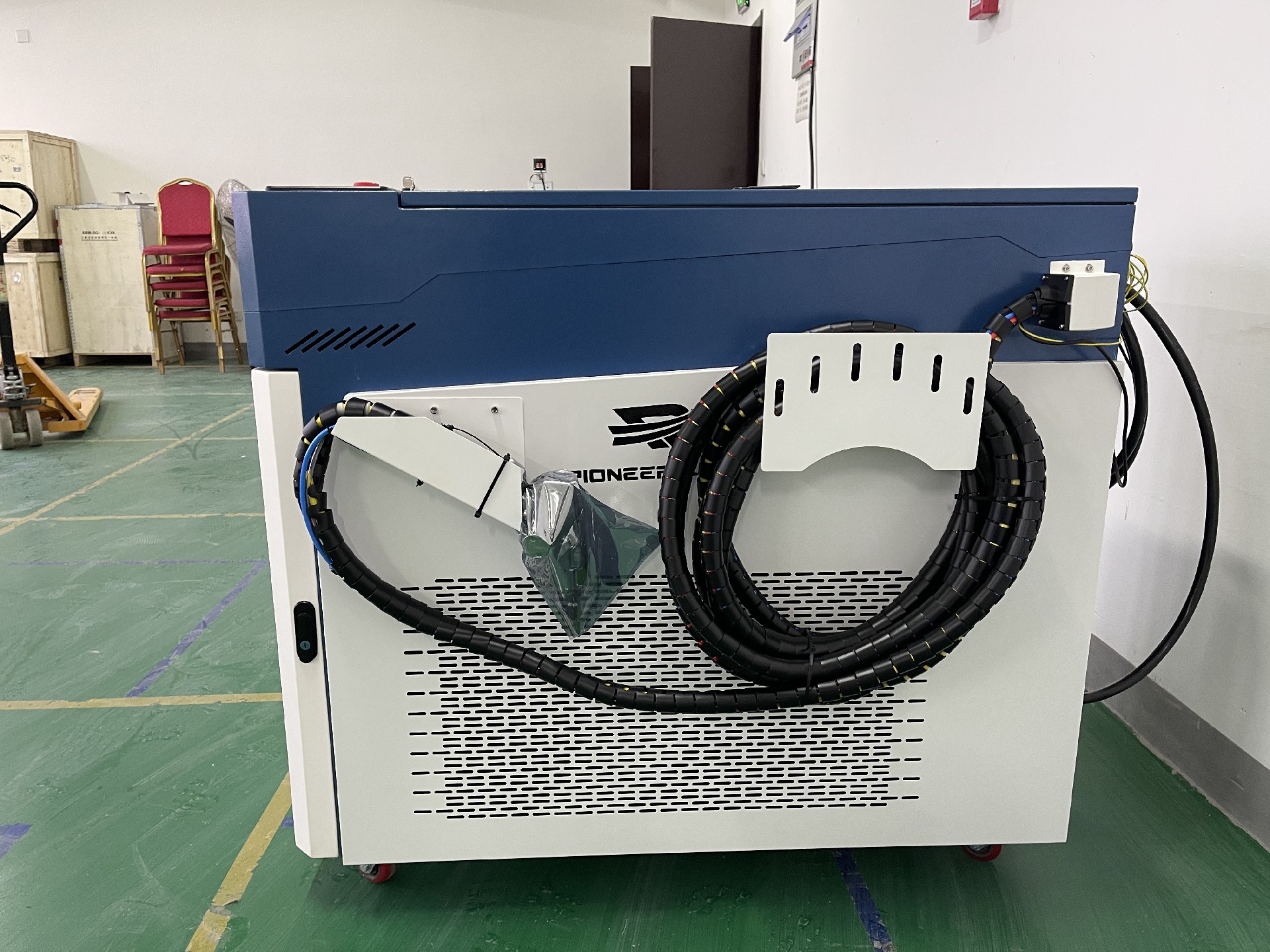

Laser welding machine 4 in 1 , it can weld , cut , clean ,clean weld seam 4 function in one machine .
Material :Carbon steel , stainless steel , Aluminum , Copper
Industry Application :
Laser Welding Machine widely used for cabinet industry, furniture industry, lamp industry,elevator industry, advertising industry, doors and windows industry, guardrail armrest, home appliance industry, medical industry, automobile industry, chassis cabinet ect industry
Main Parameter
MODEL | PLW-1500 | PLW-2000 | PLW-3000 |
Laser Source Type | Continuous fiber laser source | ||
Rating output power | 1500W | 2000W | 3000W |
Power adjustment range | 0%～100% | ||
Laser center wavelength | 1080±5nm | ||
Output type | Continuous | ||
Modulation frequency | 50-5KHZ | ||
Power instability | ±1.5% | ||
fiber output interface | QBH | ||
Indicator system | Red light | ||
Fiber Length | 10mm | ||
Welding torch cable length | 10m | ||
Sculpture focal length | 60mm | ||
Wire diameter | 0.8、1.0、1.2、1.6、2.0 | ||
Welding torch weight | 0.8kg | ||
Method of protecting gas | Coaxial protection | ||
Weld width can adjust the amplitude | 0～6 mm | ||
Water flow | 2L/min+15L/min | 2L/min+18L/min | 2L/min+20Lmin |
Working temperature | -10℃～40℃ | ||
Working environment humidity | <70% | ||
It also have laser welding machine 5 in 1 , more information , pls contact us directly
