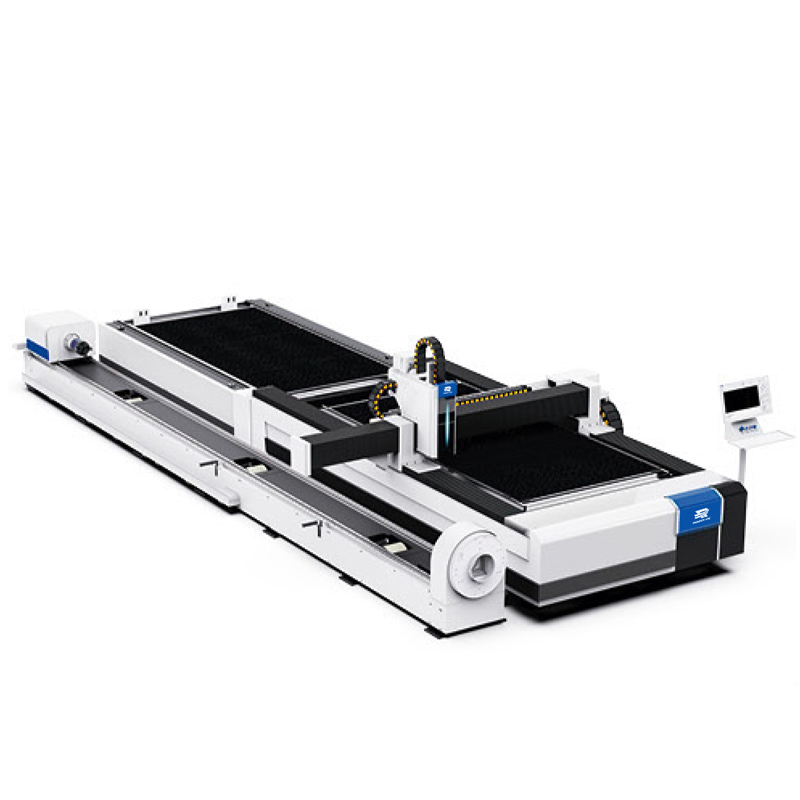

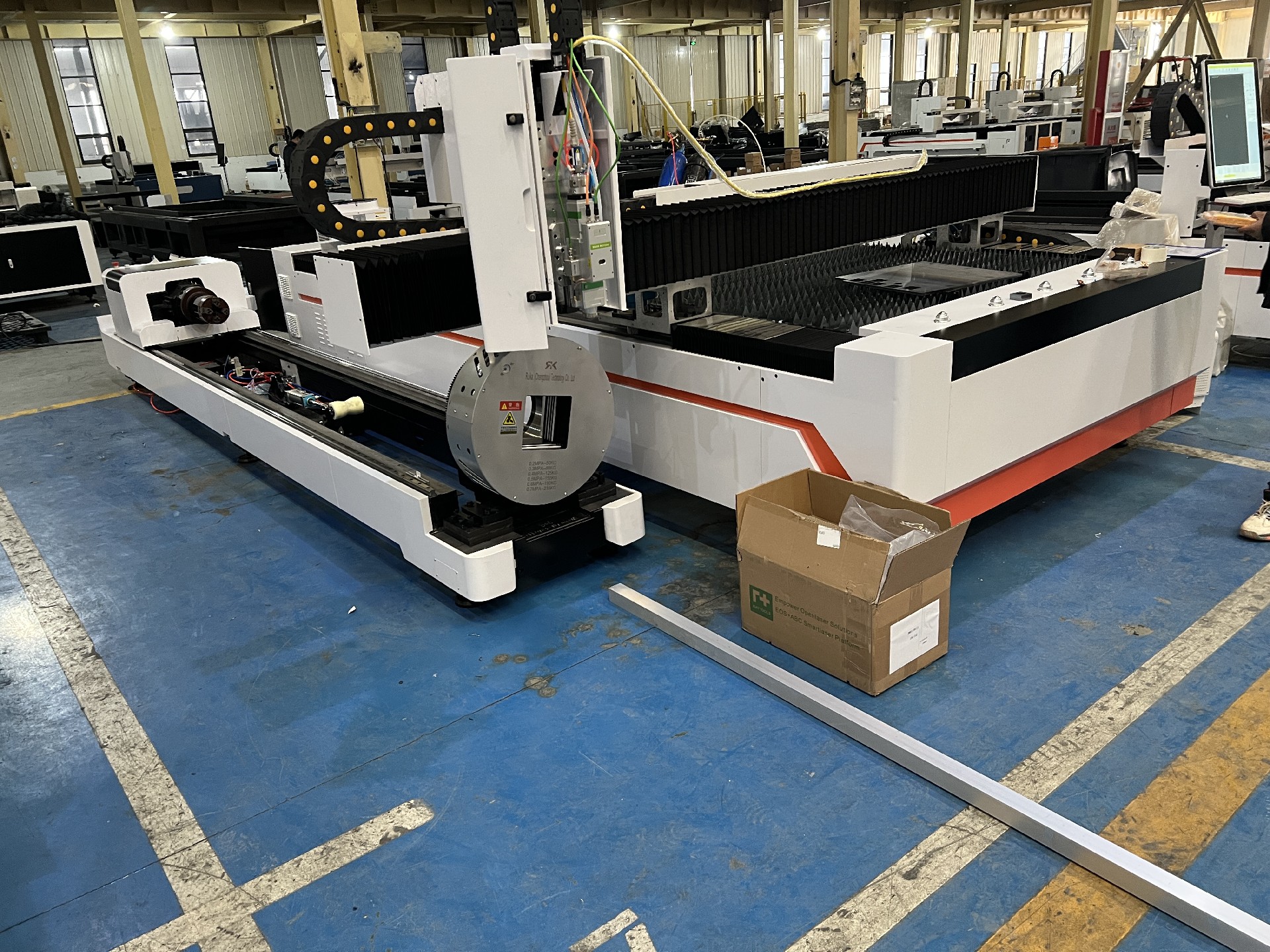

Fiber cnc laser pipe plate cutting machine cut pipe and plate in one machine , widely used for metal working , furniture , advertising industry .
Pipe chuck :120mm , 160mm , 240mm ,length can do 3m , 6m
CONFIGURATIONS PARAMETRES
1 | Machine body | Heavy duty steel welded ,strong structure , machine bed all use large milling machine mill by one time ,good cutting result . Machine frame repeat multiple timeliness,longtime using there is no deform | |
2 | Control system | XC3000S Control System/FSCUT Series | |
3 | Laser source | MAX 1500-8000W | |
4 | Laser Head | Raytools BM110/BM06K/BLT Series | |
5 | Water chiller | HanLi/S&A | |
6 | Servo motor X / Y / Z - AXIS | WEICHI | |
7 | X axis | Travel | 1550mm |
Max Running Speed | 120m/min | ||
8 | Y axis | Travel | 3050mm |
Max Running Speed | 120m/min | ||
9 | Z axis | Travel | 100mm |
Max Running Speed | 60m/min | ||
10 | Guide Rail | LAAK | |
11 | Gear and Rack | LAAK | |
12 | Reducer | TAIFU | |
13 | Acceleration | 1.4G | |
14 | Positioning accuracy | ±0.03/1000mm | |
15 | Repeat positioning accuracy | ±0.015mm | |
16 | Electrical parts | France Schneider | |
17 | Pneumatical parts | AVENTICS | |
