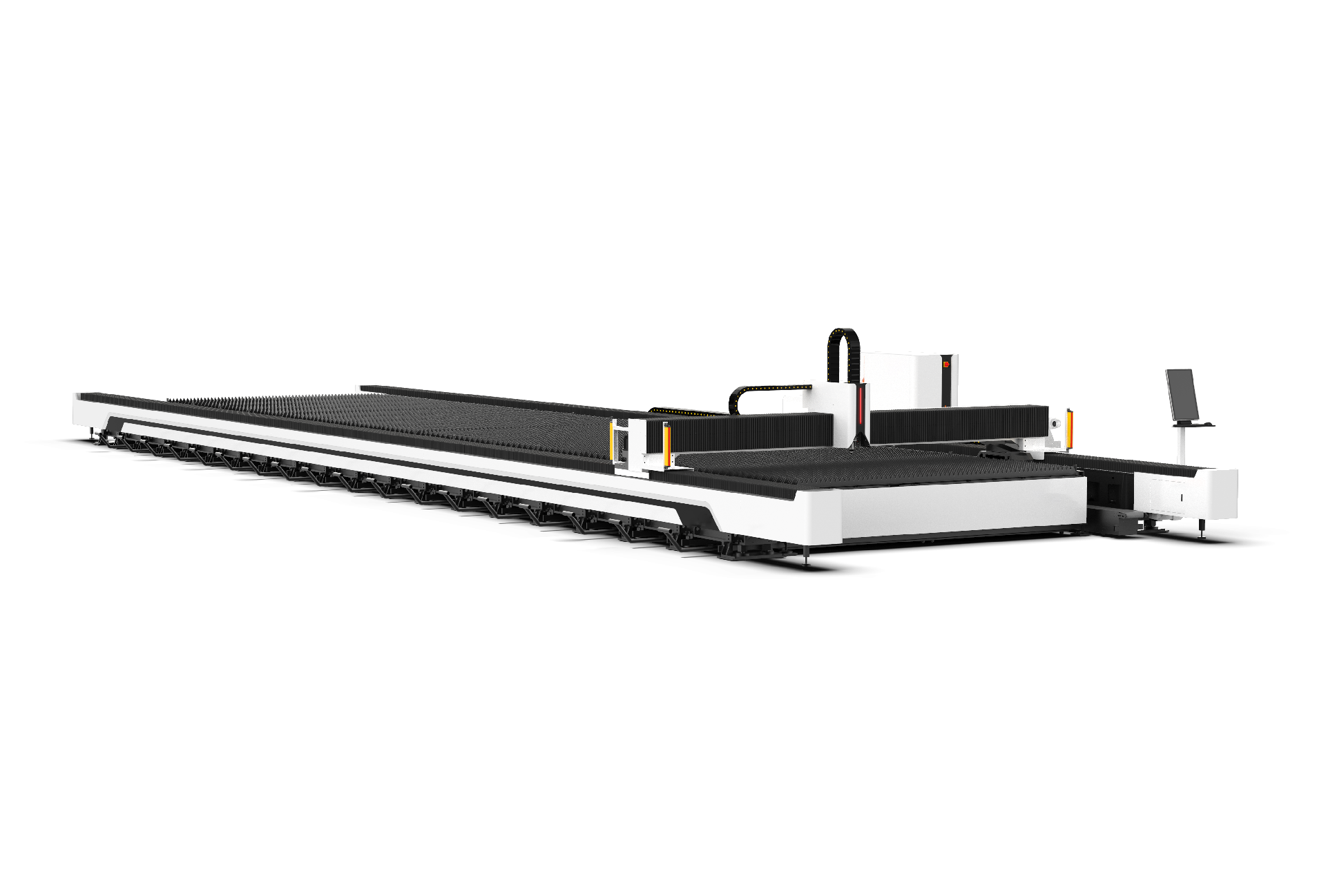

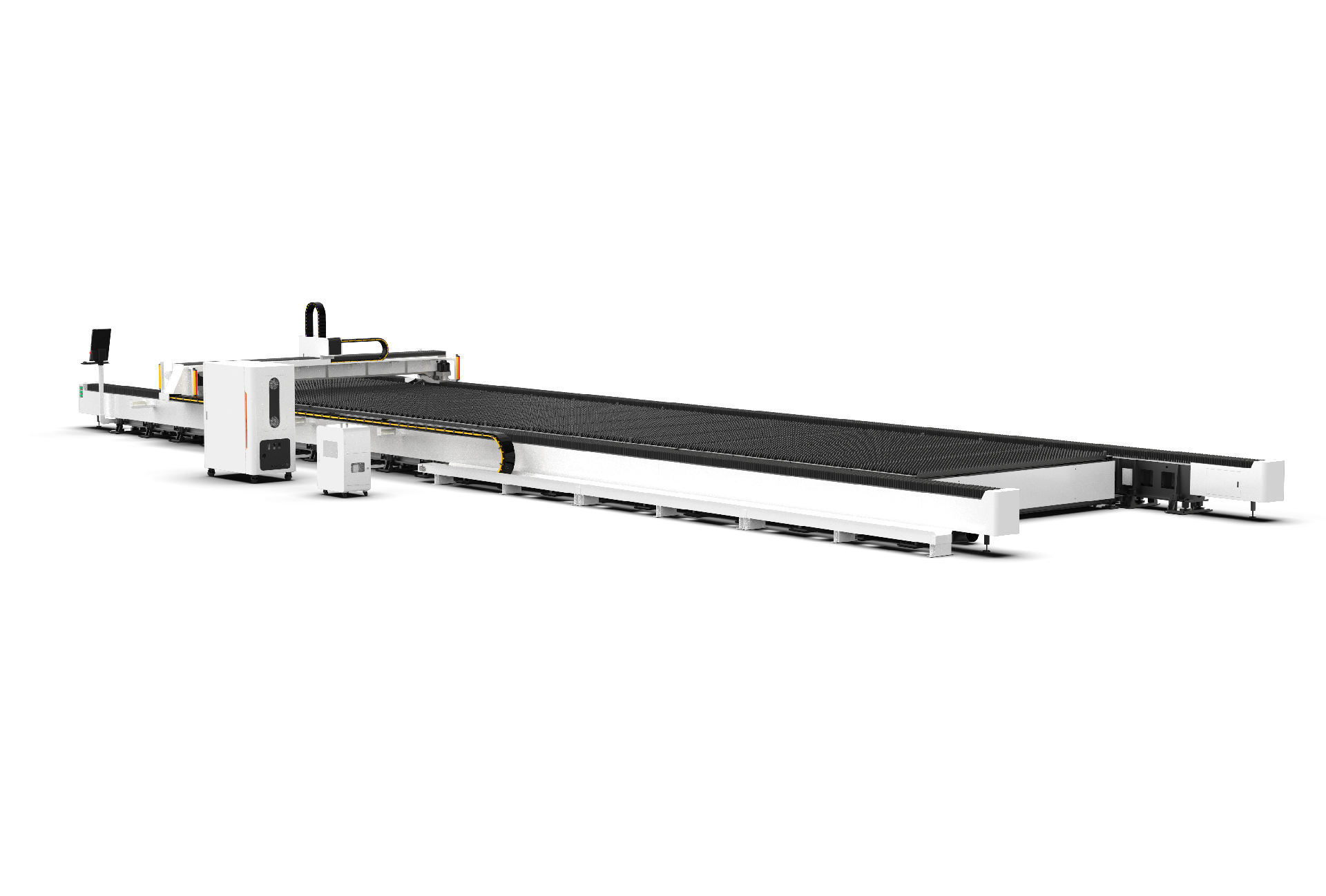

Gantry laser cnc plate cutting machine used for large metal plate cutting .It can do cutting beveling .
Industry :steel structure , metal processing ect industry .
CONFIGURATIONS PARAMETRES
1 | Machine body | Heavy duty steel welded ,strong structure , machine bed all use large milling machine mill by one time ,good cutting result . Machine frame repeat multiple timeliness,longtime using there is no deform | |
2 | Control system | FSCUT 8000 Control System | |
3 | Laser source | 12KW/20KW /30KW/40KW | |
4 | Laser Head | BLT641 | |
5 | Water chiller | HanLi | |
6 | Servo motor X / Y / Z - AXIS | WEICHI | |
7 | X axis | Travel | 3250mm |
8 | Y axis | Travel | 12300mm |
10 | Max Linkage speed | 50m/min | |
11 | Guide Rail | LAAK | |
12 | Gear and Rack | LAAK | |
13 | Reducer | TAIFU | |
14 | Acceleration | 0.5G | |
15 | Positioning accuracy | ±0.05/1000mm | |
16 | Repeat positioning accuracy | ±0.03mm | |
17 | Electrical parts | France Schneider | |
18 | Pneumatical parts | AVENTICS | |
19 | Total power | 58KVA/96A | |
