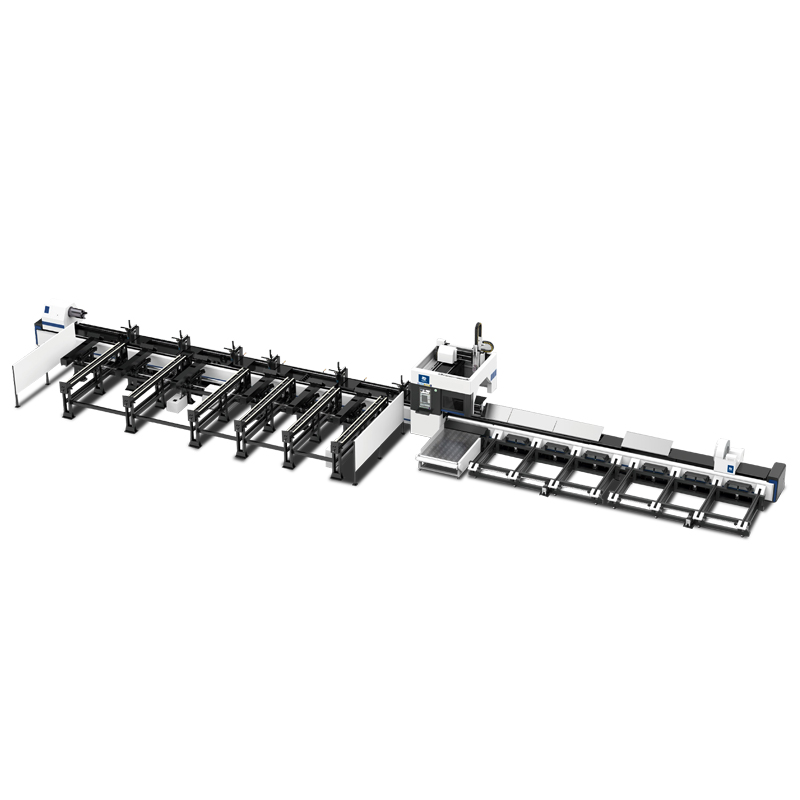

CNC Laser pipe cutting machine , it mainly used for cutting and beveling round pipe , square tube , h beam , angle beam , channel beam in one machine .Material :stainless steel , carbon steel , Aluminum , copperIt have 2 chucks , 3 chucks laser pipe cutting machine , it depend on customer deta
CONTACT
CNC Laser pipe cutting machine , it mainly used for cutting and beveling round pipe , square tube , h beam , angle beam , channel beam in one machine .
Material :stainless steel , carbon steel , Aluminum , copper
It have 2 chucks , 3 chucks laser pipe cutting machine , it depend on customer details cutting requirements.
Optional part :automatic/semi auto loading system
CONFIGURATIONS PARAMETRES
1 | Machine body | Heavy duty steel welded ,strong structure , machine bed all use large milling machine mill by one time ,good cutting result . Machine frame repeat multiple timeliness,longtime using there is no deform |
2 | Control system | FSCUT 3000DE/FSCUT 5000B / FSCUT 5000A Control System(it depend on customer details cutting requirements ) |
3 | Laser source | 3KW-20KW (it depend on customer details cutting requirements ) |
4 | Laser Head | BLT310/BLT 421/ BOCI BLT 520H bevel head(it depend on customer details cutting requirements ) |
5 | Water chiller | HanLi |
6 | Servo motor X / Y / Z - AXIS | WEICHI |

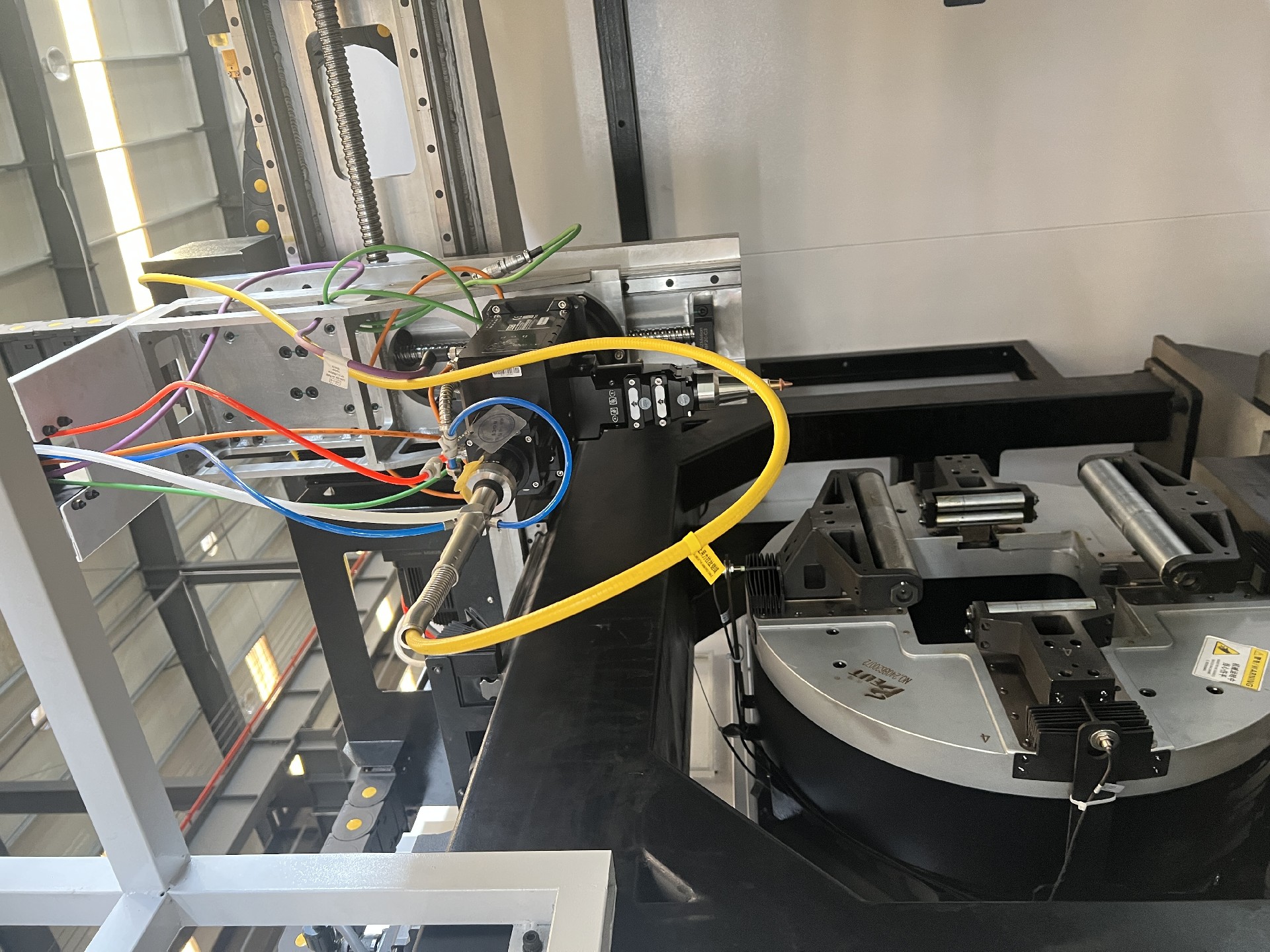

7 | Chucks DIA | 120MM -350MM |
8 | Guide Rail | PEK |
9 | Gear and Rack | T-WIN |
10 | Reducer | AFTER |
11 | Tube support device | Servo motor follow up support/Roller support (it depend on customer details cutting requirements ) |
12 | Electrical parts | France Schneider |
13 | Pneumatical parts | AVENTICS |
