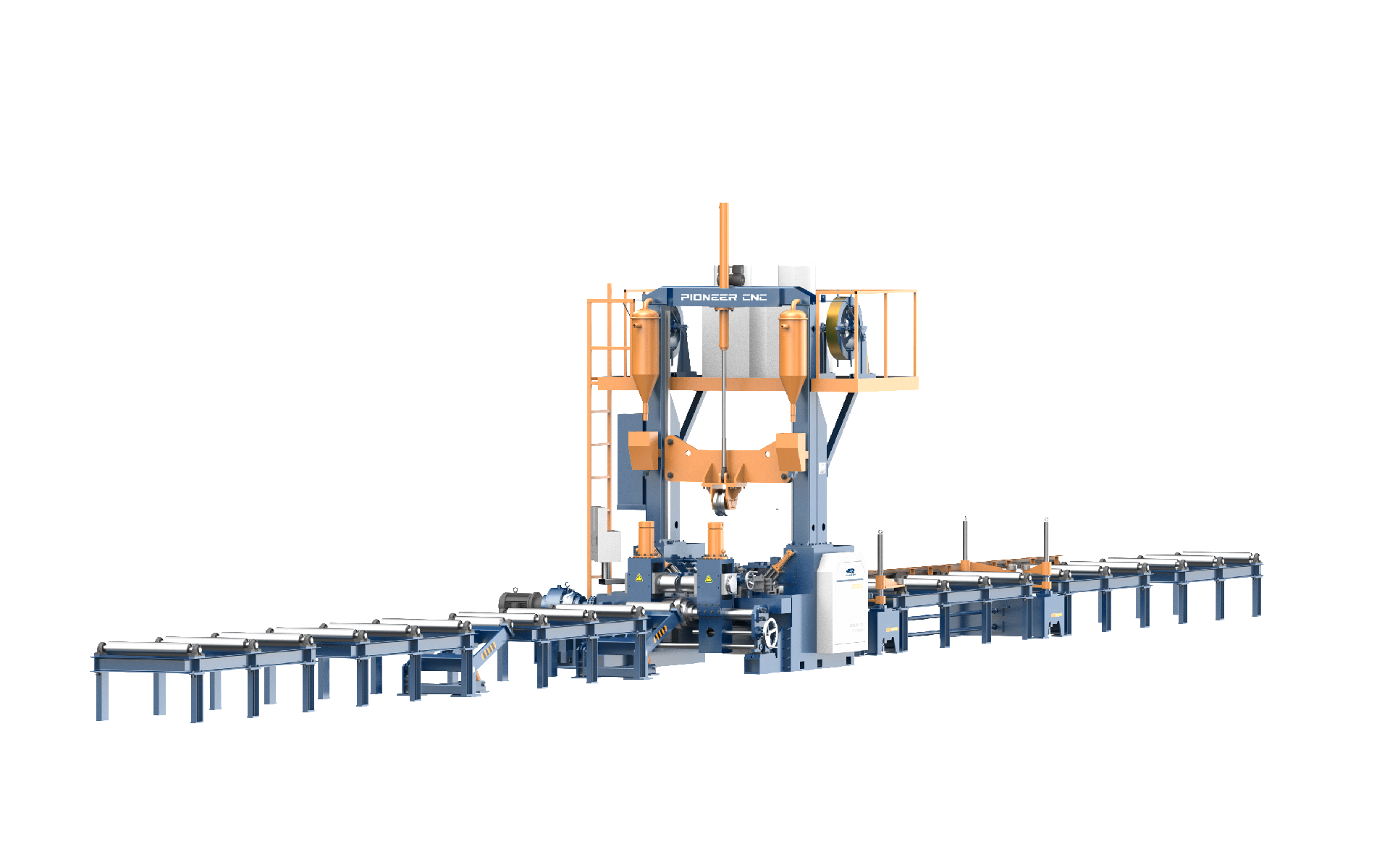

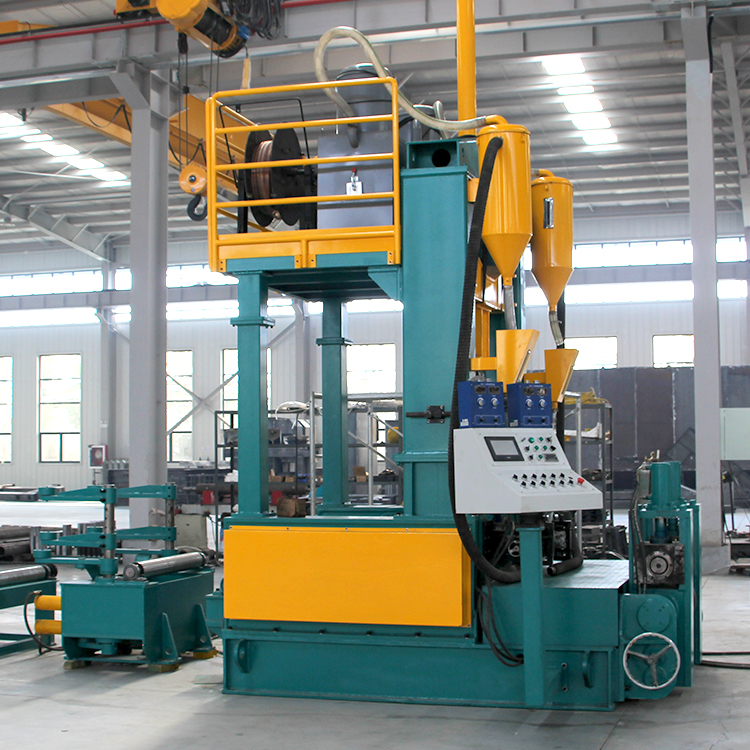

H beam assembly welding straightening machine 3 in 1 used for h beam production line ,it can save labor , save space , save cost . one set high performace cost ratio machine .
Details configuration :
NO | NAME | PFPHJ1500 |
1 | Web size | 200mm-1500mm |
2 | Web thickness | 6-16mm |
3 | Flange size | 160-800mm |
4 | Flange thickness | 6-20mm |
5 | H beam length | 12000mm |
6 | Size adjustment system | Separate, mechanical |
7 | Welding Power | 2sets MZ-1250F Submerged arc welding |
8 | Welding Power rated power | 2×80kw |
9 | Type of welding | Automatic Submerged arc welding |
10 | Welding speed | 0-1000mm/min |
11 | welding speed adjust | smooth |
12 | Welding head adjustment angle | ±45°±12.5 |
13 | Hydraulic system pressure | ≤10 pa |
14 | Welding flux automatic circulation system | 2sets |
15 | Welding flux | 2×100KG |
16 | Total power | 24 KW（It not include welding power ) |
17 | Function | Assembly ,welding ,straightening |
H beam Assembly welding straightening machine 3 in 1 video show :
