Pipe & Beam Profile Laser Cutting Machine
Brief introduction:
u Model：PFP-ZP120120
1 ．Cutting Max Round Pipe 1200mm
2 ．Square Tube 800*800mm
3 ．Rectangular Tube 1000*500mm
4.H beam If width is 800mm , height can do 800mm ; if width is 1000mm , height max can do 400mm .
u Name: Pipe & Beam Profile Laser Cutting Machine
u Application: Pipe & Beam Profile Rotary Table Laser Cutting Machine consists of Cutting Unit, Roller frame[Feeding In & Feeding Out], Self-Centering Chuck & Self-Centering Clamp Feeding Trolley & Rail, Storage & Finished Profile Traversion Conveyor Station, etc. It is a hot cutting processing equipment for Round Pipe, Square tube, rectangular tube, H/I/U/C Beam, Channel steel, Angle Steel, Flat Steel and their intersection shape.
u Dimension ：The whole cutting machine is 26600mm length, 8000mm width, of which cutting unit length is 2900mm, Feeding In Conveyor Unit is 15000mm, Feeding Out Conveyor Unit is 11000mm, the max cutting materials is 12000mm.
u Applicable materials：Carbon structural steel, stainless steel
Main technical parameters:
Item | Name | Parameters |
1 | Maximum: | |
Round Pipe diameter | 1200mm | |
Square Tube | 800x800mm | |
Rectangular tube | 1000x400mm | |
H beam | If width is 800mm , height can do 800mm ; if width is 1000mm , height max can do 400mm . | |
Length | 12000mm | |
2 | Cutting method | Fiber Laser Cutting |
3 | Laser source | Max 20000W |
4 | Laser cutting thickness | Quality/pierce Cutting thickness 1-40mm |
Beveling cutting angle/thickness | ±45 degree; Beveling cutting thickness1~30mm. | |
5 |
Workpiece Cutting | Small hole, bevel cutting, line marking, double-sided marking of H-beam web, zero tailing cutting, TEKLA data import, TEKLA automatic recognition of weld line marking, H-beam cycle cutting, H-beam mid-air cutting through welding holes, etc. |
6 | Feeding axis stroke | 13500mm |
Effective cutting length | 12000mm | |
Turntable Shaft(Axis) Stroke | 0~ ±360 degrees | |
Lifting Axis Stroke | 600mm | |
7 | Position precision in X, Y axis direction | ≤±0. 10mm; Total Length ≤±0.25mm |
Repeat Position Precision in X , Y axis direction | ±0. 10mm | |
8 | Maximum fast positioning speed | 80m/min |
9 | Power Supply | 3 Phase 380V |
10 | Rated input power | 50KVA |
11 | Cutting accuracy execution standard | ISO9013-2002ISO8206-1991 JB/T10045.4-1999JB |

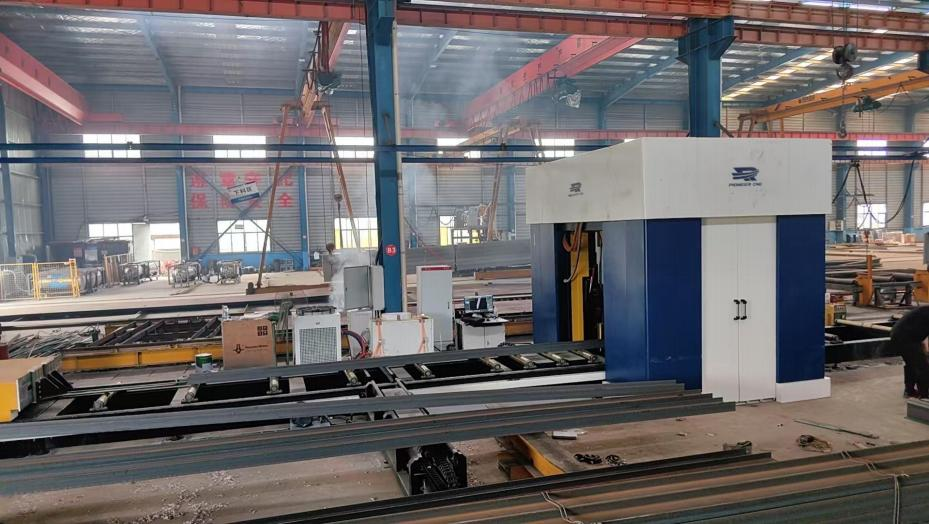

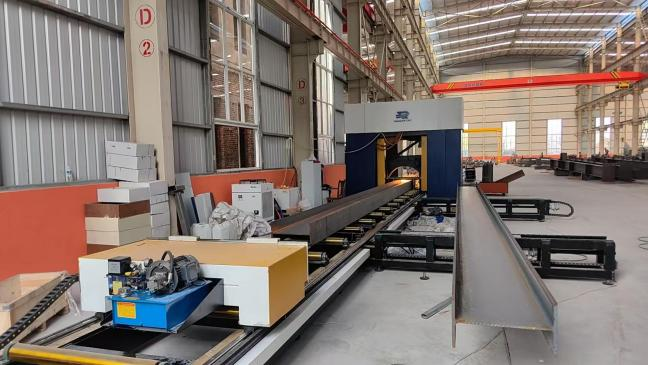

Pipe & Beam Profile Laser Cutting Machine Pictures :
Video show :
